FLS-68010_revB

Major VersionM

by Nicolas

  1. Lift the front of the snowmobile in such a way that the skis are off the ground. Remove the stock shocks according to the procedures recommended by the manufacturer.
    • Lift the front of the snowmobile in such a way that the skis are off the ground.

    • Remove the stock shocks according to the procedures recommended by the manufacturer.

    • Install the Elka front shocks with the piggyback reservoir at the top and pointing outside of the snowmobile as shown.

    • The lower shock eyelets should be installed with the rebound adjuster oriented towards the outside of the vehicle as shown.

  2. Remove the 4 bolts of the rear skid, this step will give you a better access to the rear shock. Remove the 4 bolts of the rear skid, this step will give you a better access to the rear shock. Remove the 4 bolts of the rear skid, this step will give you a better access to the rear shock.
    • Remove the 4 bolts of the rear skid, this step will give you a better access to the rear shock.

  3. Install the rear elka suspension  with the bolts kit provided as it shown on the picture . The aluminium spacer will allow the space claim of the coil over shock. The shock head is mount downward with the rebound adjuster pointing either the left or right side. The shock head is mount downward with the rebound adjuster pointing either the left or right side.

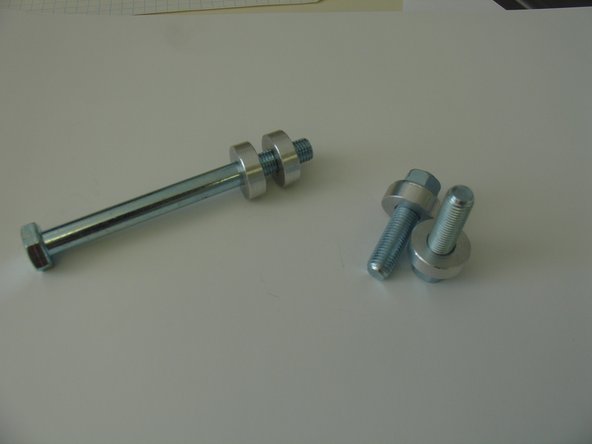

    • Install the rear elka suspension with the bolts kit provided as it shown on the picture . The aluminium spacer will allow the space claim of the coil over shock.

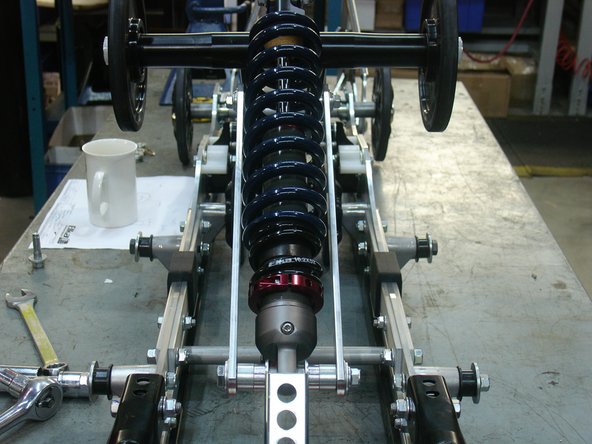

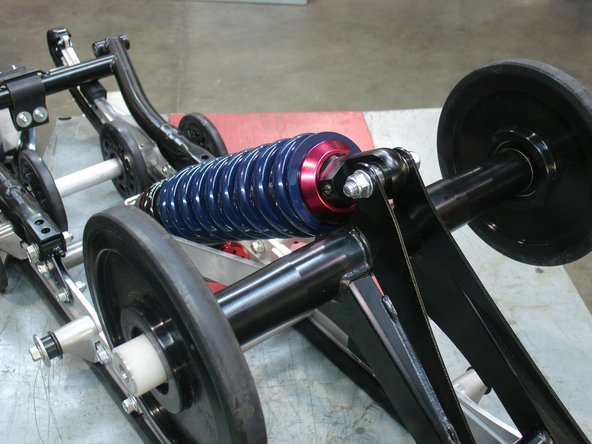

    • The shock head is mount downward with the rebound adjuster pointing either the left or right side.
