  1. Lift the rear suspension as the track is not touching the ground Remove the limiter strap and the torsion spring holder
    • Lift the rear suspension as the track is not touching the ground

    • Remove the limiter strap and the torsion spring holder

  2. remove the two bolts that hold the rear skid.
    • remove the two bolts that hold the rear skid.

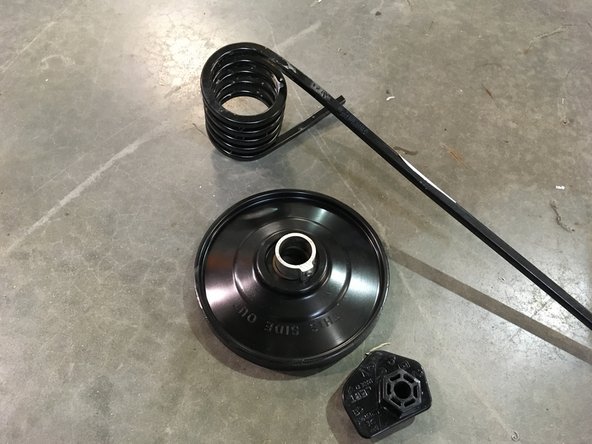

  3. Remove the Idler wheel, the torsion spring and the spring adjsuter on both side. Remove the Idler wheel, the torsion spring and the spring adjsuter on both side.
    • Remove the Idler wheel, the torsion spring and the spring adjsuter on both side.

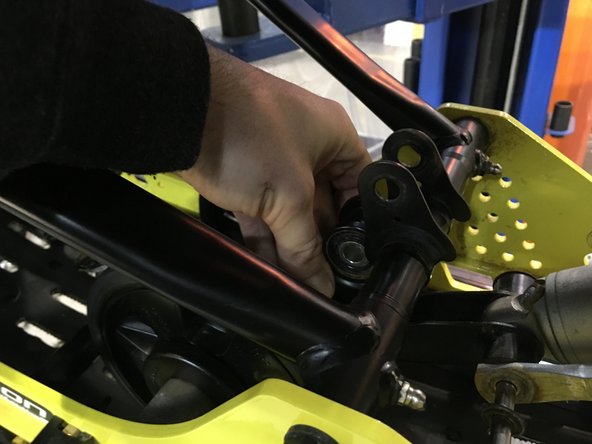

  4. Remove the linkage.
    • Remove the linkage.

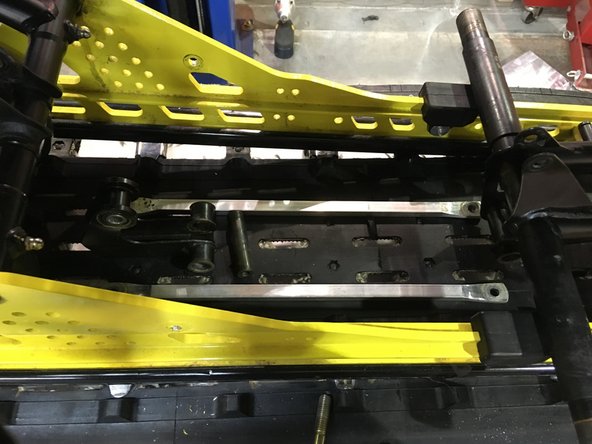

  5. Remove the stock rear shock with both aluminium link.
    • Remove the stock rear shock with both aluminium link.

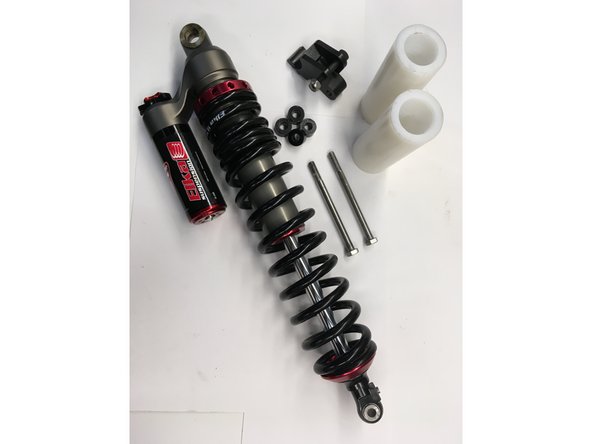

  6. The Kit include:1 linkage, 2 long M8 bolts, 1 M8 shock bolt with lock nut, 4 aluminium spacers and 2 nylon sleeves
    • The Kit include:1 linkage, 2 long M8 bolts, 1 M8 shock bolt with lock nut, 4 aluminium spacers and 2 nylon sleeves

  7. installed the top mount shock  in the stock link along with the 2 spacer and the M8 bolts. Use stock washer and nut. Mount the linkage in is place with the shock reservoir facing downward.
    • installed the top mount shock in the stock link along with the 2 spacer and the M8 bolts. Use stock washer and nut.

    • Mount the linkage in is place with the shock reservoir facing downward.

  8. installed the elka linkage on the rear shock arm, use the stock shock bolt.

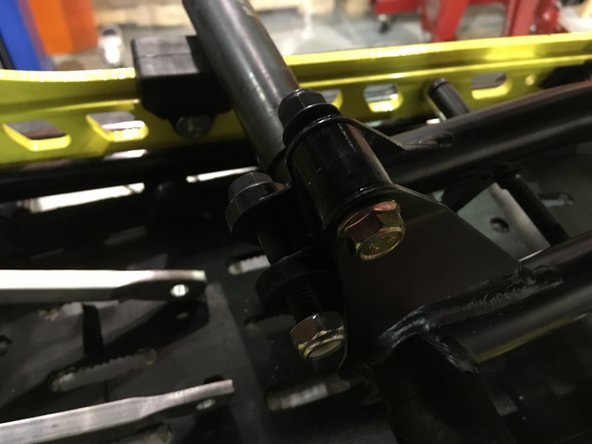

    • installed the elka linkage on the rear shock arm, use the stock shock bolt.

  9. Installed the bottom shock mount in the elka linkage with the rebound adjuster facing upward.
    • Installed the bottom shock mount in the elka linkage with the rebound adjuster facing upward.

  10. installed the 2 spacer and bolt provided to space the aluminium link. installed the 2 nylon bushing on both side of the rear arm. reinstalled the idler wheel.

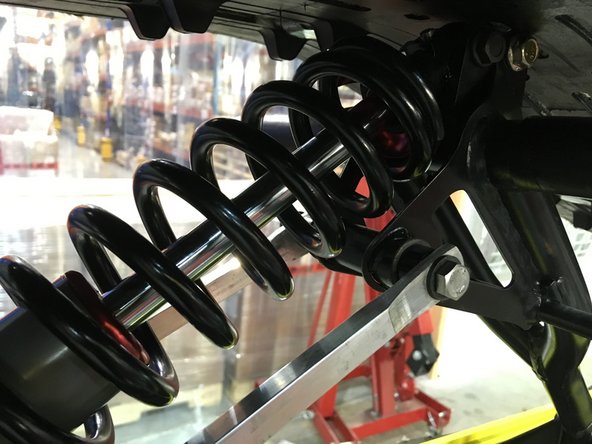

    • installed the 2 spacer and bolt provided to space the aluminium link.

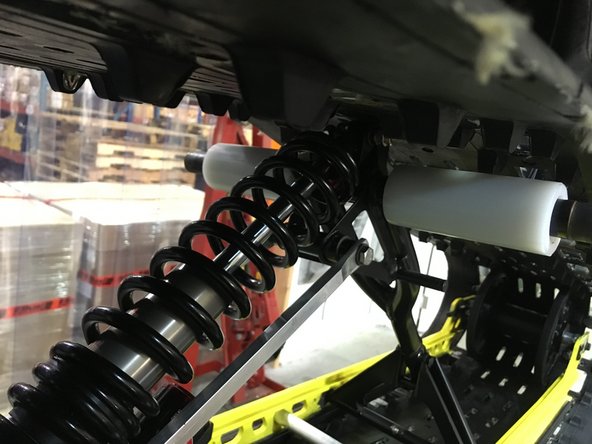

    • installed the 2 nylon bushing on both side of the rear arm.

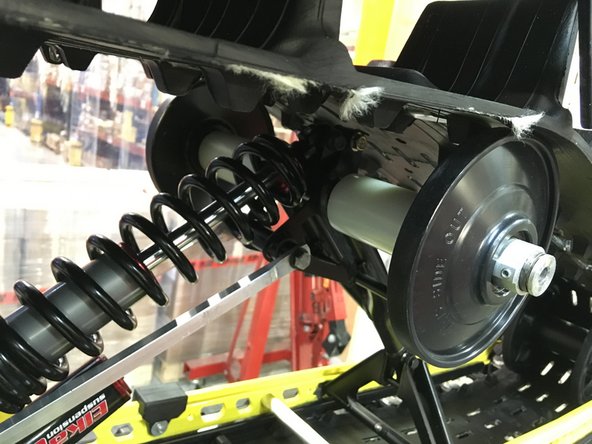

    • reinstalled the idler wheel.

  11. Reinstalled the rear arm 17mm bolt and limiter strap
    • Reinstalled the rear arm 17mm bolt and limiter strap

    • installation complete.

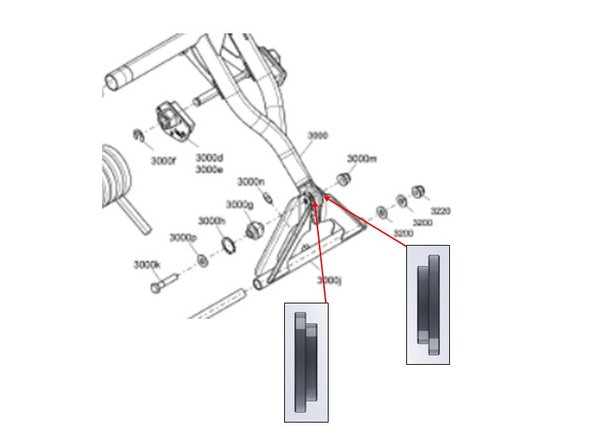

  12. Install the provided t-motion delete  bushing between rear arm assembly and the pivot arm.
    • Install the provided t-motion delete bushing between rear arm assembly and the pivot arm.
