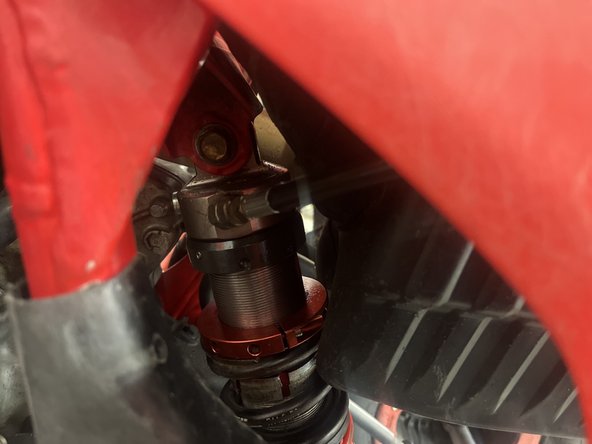

Install front shock with the piggyback reservoir up as shown.
-
The lower eyelet can be turned to align rebound adjuster facing rear of atv.
-
-
-
Install rear stage 5 shock with the hose fitting facing left of atv, and the hose going backward the atv.
-
Pass the hose to the top of the battery.
-

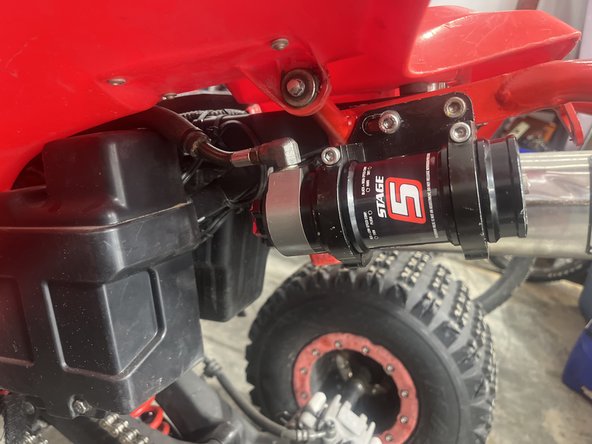

Install bracket kit with supplied bolts on the left side of grab bar.
-
Sit reservoir in bracket and torque hex cap screws at 8 FT-Lb.
-
Almost done!
Finish Line
