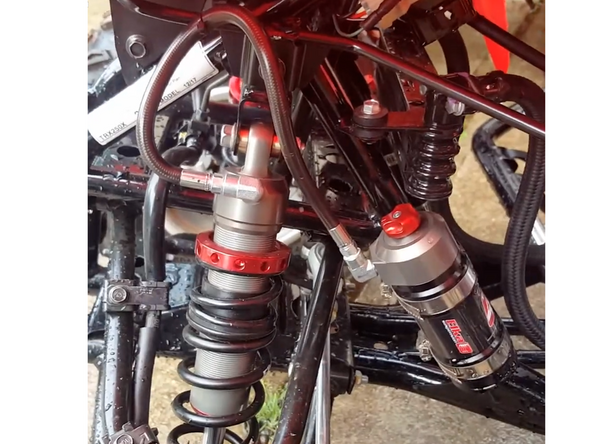

Install shocks with the reservoir hose facing the front of quad.
-

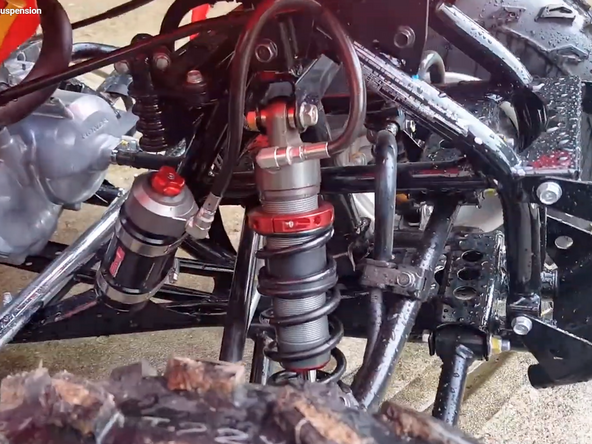

Install reservoirs on the frame as shown with the supplied mounting kit.
-
-
-
Install rear shock with the hose fitting on head facing the rear of quad.
-

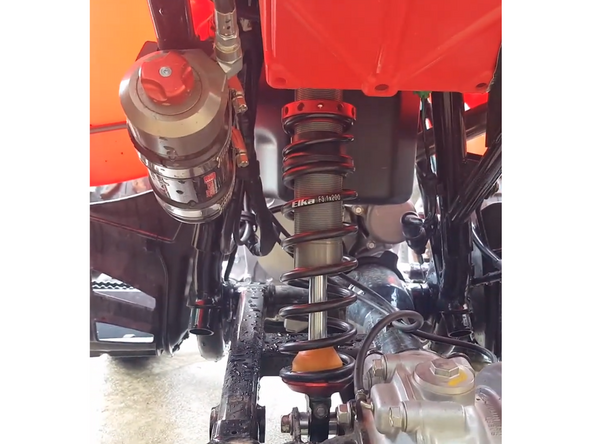

Route the hose as shown and install reservoir on sub-frame as shown with the supplied mounting kit.
-
The rebound adjuster screw must face the rear of quad. The lower eyelet can be turned if necessary.
-
Almost done!
