Lift the vehicule using a jack or stand so that the wheels are off the ground. Refer to your vehicule's owner's manual for specific instructions on how to remove the stock shocks. Keep the Original bolts to re-use when installing your nes Elka Shocks
-
-
-
Install the front new Elka shocks with the reservoir ( on Stage 3-4-5 ) or Schraeder nitrogen valve ( on Stage 1-2 ) at the top of vehicle. ( Right side shown ). The reservoir must be orientated backwards
-
-
-

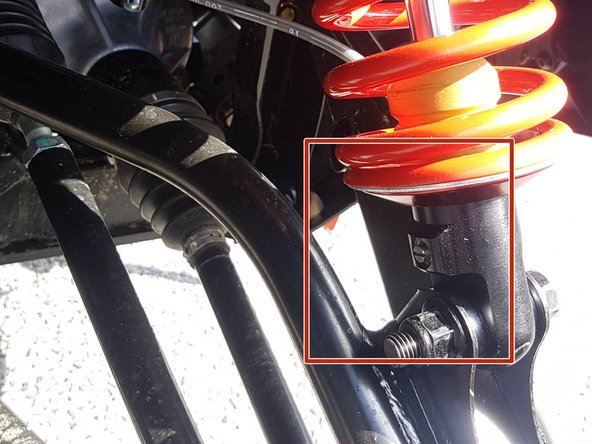

On Stage 2, Stage 4 and Stage 5 models, the lower shock eyelets should be installed with the rebound adjuster (red square) oriented towards the back of the vehicle as shown by the Red square on the photo ( Right side shown ). If needed, you can turn the lower eyelet to orient properly.
-
-
-

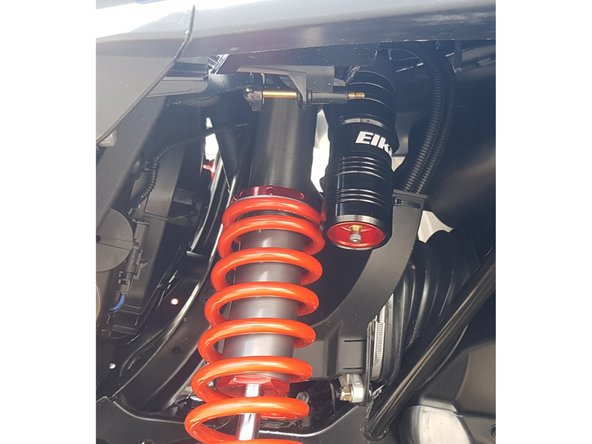

Insert wisdom here.Install the front new Elka shocks with the reservoir ( on Stage 3-4-5 ) or Schraeder nitrogen valve ( on Stage 1-2 ) at the top of vehicle. ( left side shown ). The reservoir must be orientated backwards
-
-
-

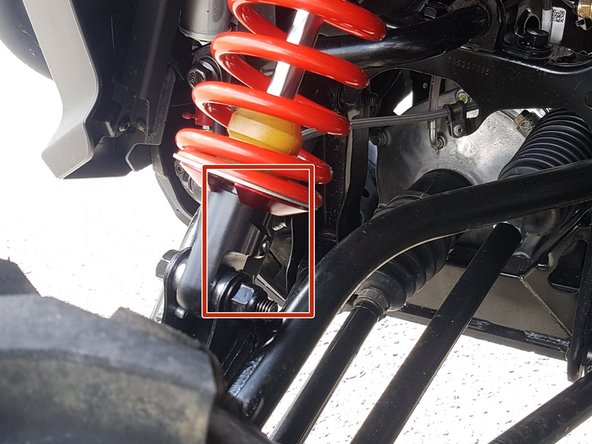

On Stage 2, Stage 4 and Stage 5 models, the lower shock eyelets should be installed with the rebound adjuster (red square) oriented towards the back of the vehicle as shown by the Red square on the photo ( left side shown ). If needed, you can turn the lower eyelet to orient properly.
-
-
-

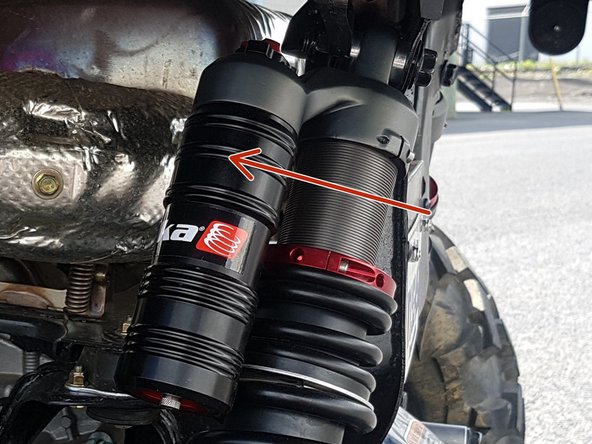

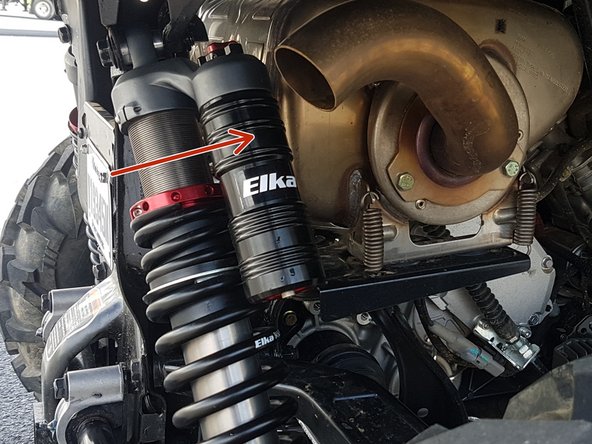

Install the left and right new Elka rear shock with the piggyback reservoir at the top and oriented towards the front of the vehicle as indicated by the red Arrow on the photo. On Stage 1 and Stage 2, the left and the right shock are the same. Just install them with the shraeder nitrogen valve at the top of vehicle.
-
-
-

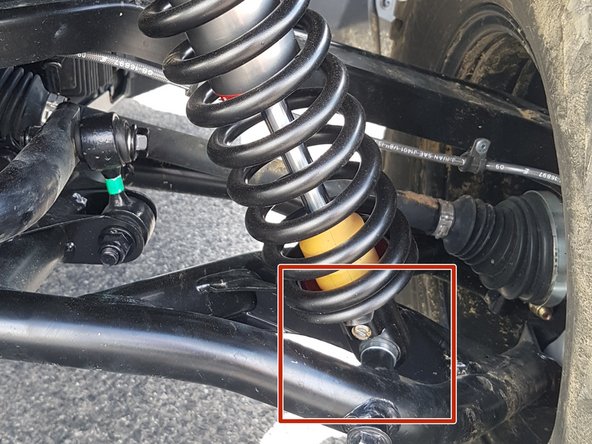

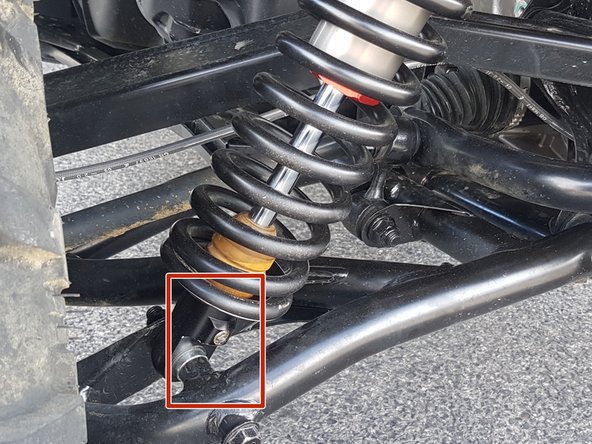

On Stage 2, Stage 4, and Stage 5 models the rebound adjuster located on lower eyelet of the shocks should be oriented towards the rear of the vehicle, as shown. (Shown by the red square ). If needed, you can turn the lower eyelet to orient properly.
-
