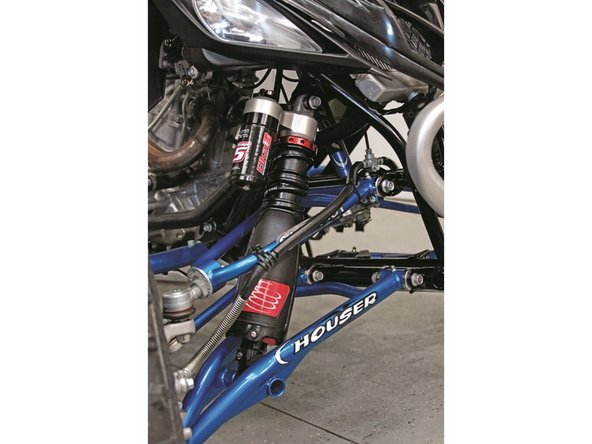

Install front shocks with the reservoir upside and facing outside the atv as shown.
-
-
-

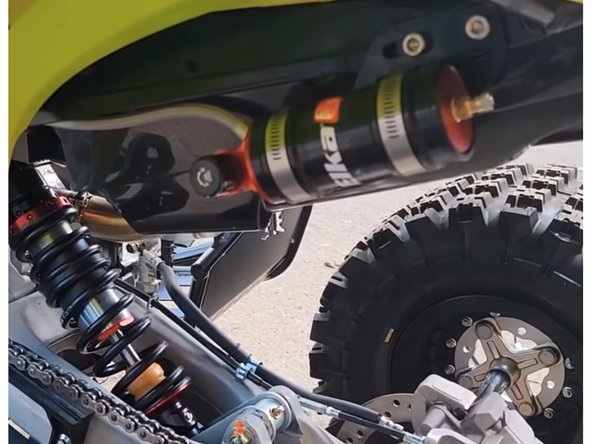

Install shock with the hose fitting on the front side of atv, and pointing left of atv.
-
Root the hose to the rear of atv on the left side and fix the reservoir bracket on the sub frame as shown.
-
Place rubber isolators between bracket and reservoir, then fix the reservoir with the worm-drive clamps. Full isolator (red arrow) fixed on the small portion of the bracket, and cuted isolator (blue arrow) on the right side.
-
-
-

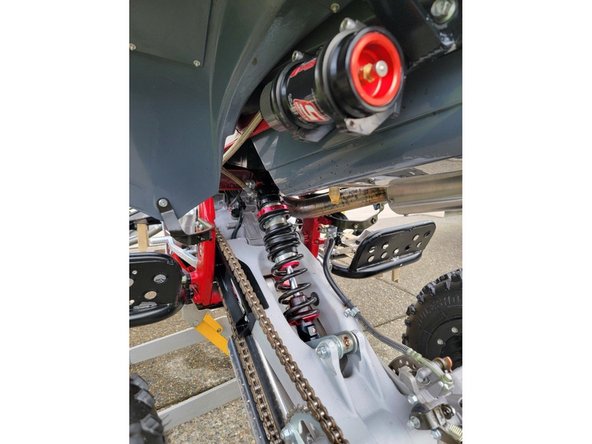

Install shock with the hose fitting on the left side of atv, and pointing rear of atv.
-

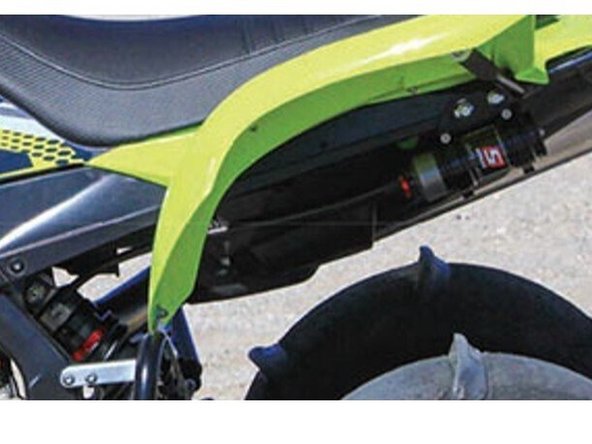

Root the hose to the rear of atv on the left side and fix the reservoir bracket on the sub frame as shown.
-
Sit reservoir in bracket and torque hex cap screws at 8 FT-Lb.
-
-
-

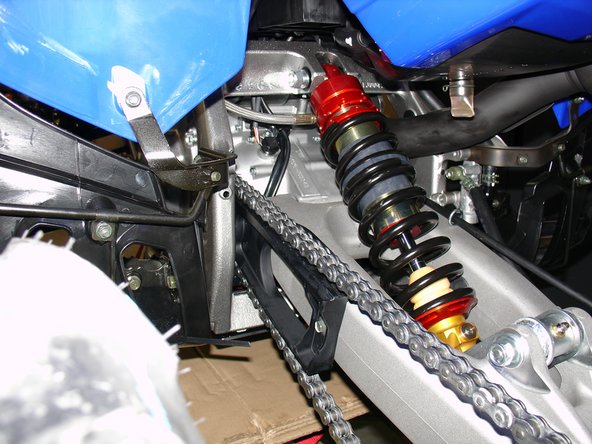

Install shock with the hose facing front of atv and pointing to left side.
-

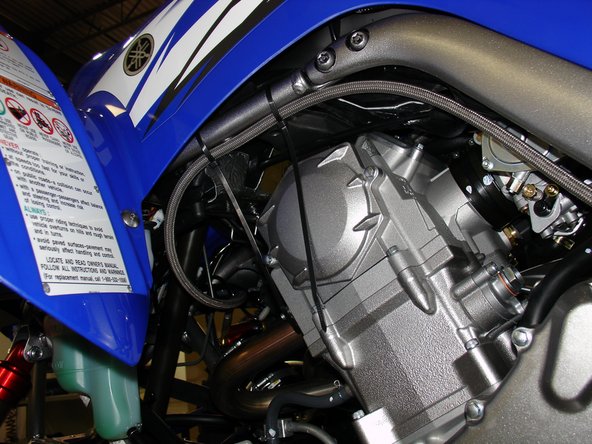

Root the hose along the left side of the frame.
-

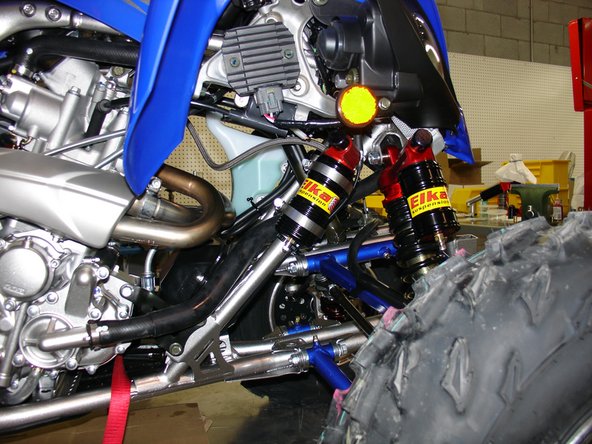

Pass the reservoir in front of the head pipes to locate the reservoir on the right side as shown. Fix reservoir with rubber isolators and worm-drive clamps.
-
