SKI-DOO SUMMIT 850 2017-2020

Lift the front of the snowmobile in such a way that the skis are off the ground.

Remove the stock shocks according to the procedures recommended by the manufacturer.

Install the Elka front shocks with the piggyback reservoir at the top and pointing fowards of the snowmobile as shown

Remove the limiter strap.

Lift the rear of the snowmobile in such a way that the track is not touching the ground.

Remove the two spring supports to remove any tension on the torsion springs.

Remove the stock suspension.

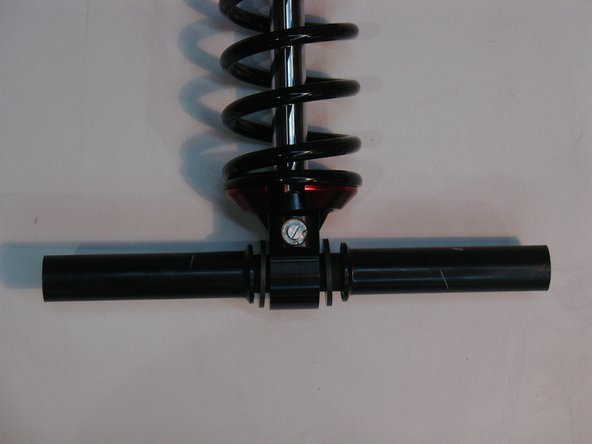

Install the sleeve through the bottom eye with the plastic spacer on both side of the eyelet.

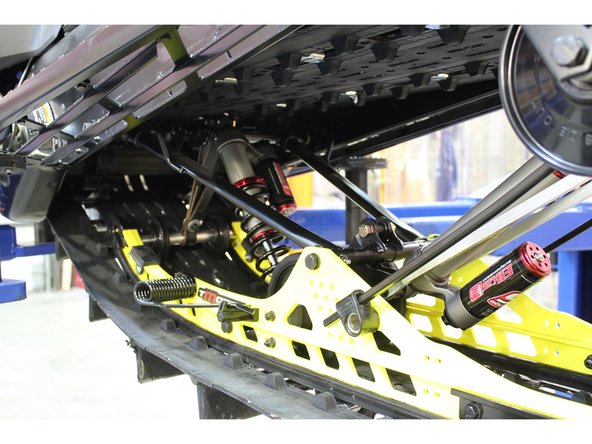

Install the Elka center shock with piggyback reservoir at the top and pointing towards the right side of the snowmobile as show on the photo.

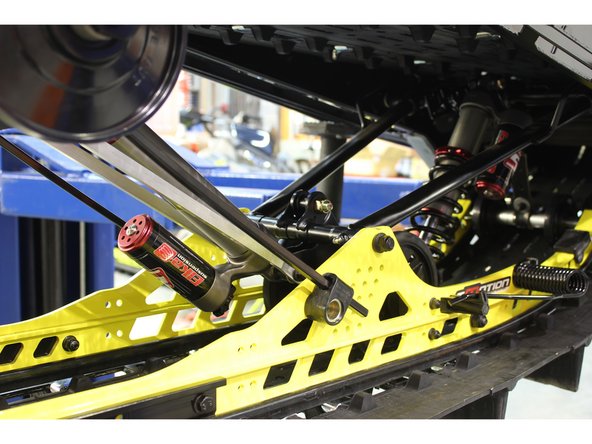

Install the Elka rear shock with the piggyback reservoir at the bottom and oriented towards the rear of the snowmobile as shown on the photo.

Re-install the two spring supports.

Lower the snowmobile completely and re-install the limiter strap.
