FLS-72042_revC

Major VersionM

by Sebastien Blain

  1. Lift the vehicle using a jack or stand so that the wheels are off the ground. Refer to your vehicle's owner manual for specific instructions on how to remove the stock shocks. Keep your original bolts to re-use when installing your new Elka shocks.
    • Lift the vehicle using a jack or stand so that the wheels are off the ground. Refer to your vehicle's owner manual for specific instructions on how to remove the stock shocks. Keep your original bolts to re-use when installing your new Elka shocks.

  2. Install the front new Elka shocks with the reservoir ( on Stage 3-4-5 ) or Schraeder nitrogen valve ( on Stage 1-2 ) at the top of vehicle. The first photo shows the left side of vehicle. The piggyback reservoir on the left shock is at 90 degrees angle with the upper mounting bushing. Reservoir must be oriented facing the rear of vehicle as shown by red Arrow. The second photo shows the right side of vehicle. The piggyback reservoir on the left shock is at 45 degrees angle with the upper mounting bushing. Reservoir must be oriented facing the rear of vehicle as shown by yellow Arrow.
    • Install the front new Elka shocks with the reservoir ( on Stage 3-4-5 ) or Schraeder nitrogen valve ( on Stage 1-2 ) at the top of vehicle.

    • The first photo shows the left side of vehicle. The piggyback reservoir on the left shock is at 90 degrees angle with the upper mounting bushing. Reservoir must be oriented facing the rear of vehicle as shown by red Arrow.

    • The second photo shows the right side of vehicle. The piggyback reservoir on the left shock is at 45 degrees angle with the upper mounting bushing. Reservoir must be oriented facing the rear of vehicle as shown by yellow Arrow.

    • The nitrogen valve on Stage 1 and Stage 2 must be installed facing outside the vehicle as shown in the third photo.

  3. On Stage 2, Stage 4 and Stage 5 models, the lower shock eyelets should be installed with the rebound adjuster oriented towards the rear of the vehicle as shown by the blue Arrow on the photo ( right side shown ). If needed, you can turn the lower eyelet to orient properly.

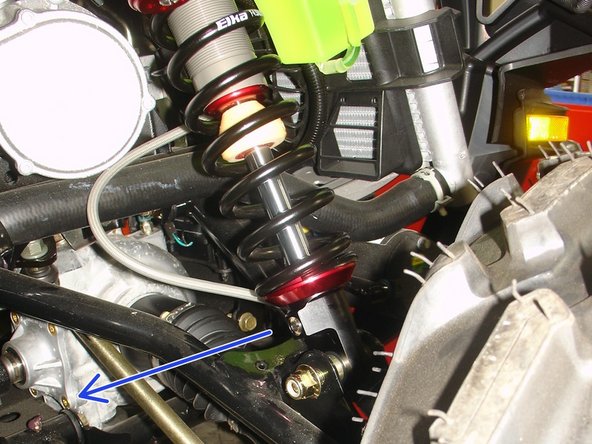

    • On Stage 2, Stage 4 and Stage 5 models, the lower shock eyelets should be installed with the rebound adjuster oriented towards the rear of the vehicle as shown by the blue Arrow on the photo ( right side shown ). If needed, you can turn the lower eyelet to orient properly.

  4. Install the new Elka rear shocks with the piggyback reservoir at the top and oriented towards the rear of the vehicle and pointed slightly Inside the vehicle.

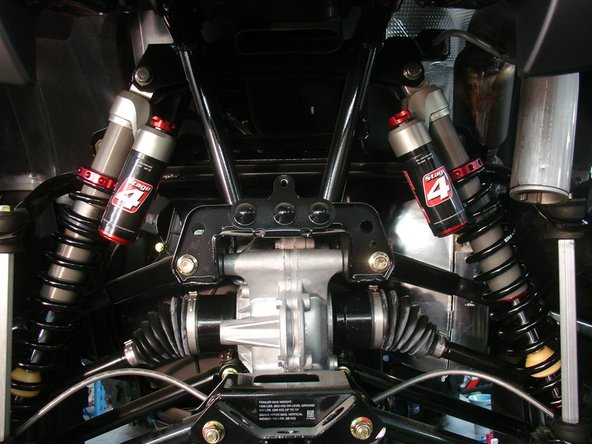

    • Install the new Elka rear shocks with the piggyback reservoir at the top and oriented towards the rear of the vehicle and pointed slightly Inside the vehicle.

    • On Stage 1 and Stage 2 shocks, install them with the heads up and the nitrogen valve facing outside the vehicle.

  5. On Stage 2, Stage 4, and Stage 5 models the rebound adjuster located on lower eyelet of the shocks should be oriented towards the inside of the vehicle, as shown. (Right side shown ). If needed, you can turn the lower eyelet to orient properly. This way you can have access to the rebound screw Under the lower arm. Note: We highly recommend a tire pressure of ± 7 psi..

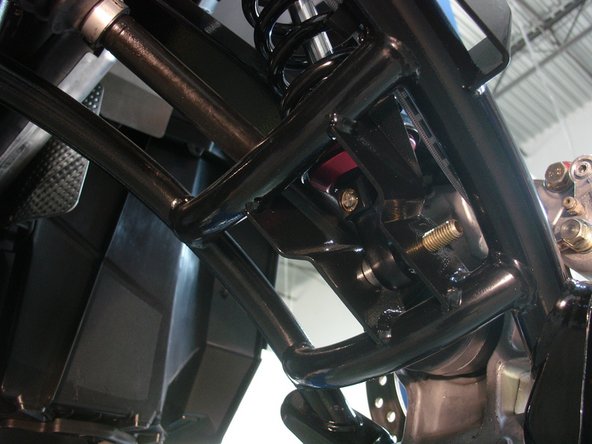

    • On Stage 2, Stage 4, and Stage 5 models the rebound adjuster located on lower eyelet of the shocks should be oriented towards the inside of the vehicle, as shown. (Right side shown ). If needed, you can turn the lower eyelet to orient properly. This way you can have access to the rebound screw Under the lower arm.

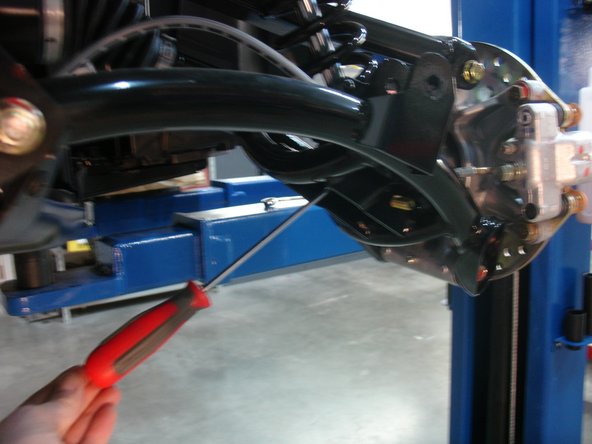

    • Note: We highly recommend a tire pressure of ± 7 psi..
