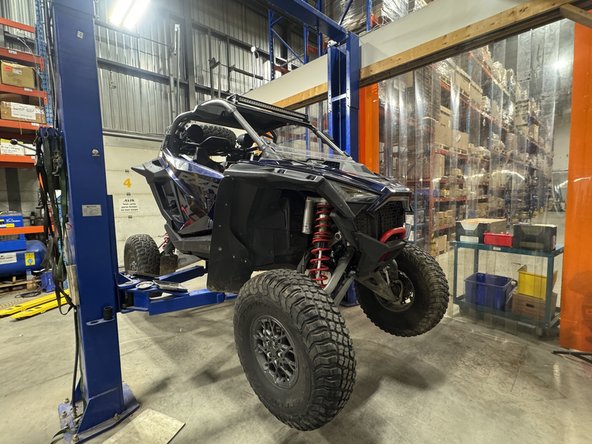

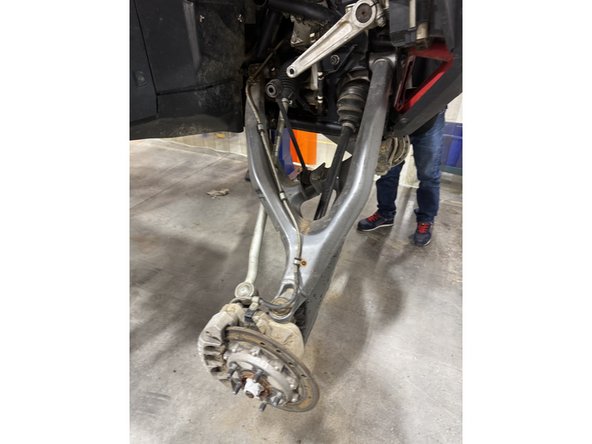

Remove the OEM shocks.
-
Keep your original bolts to re-use when installing your new Elka shocks.
-
-
-
Install the piggyback shock with the reservoir upward and facing outside the vehicle.
-

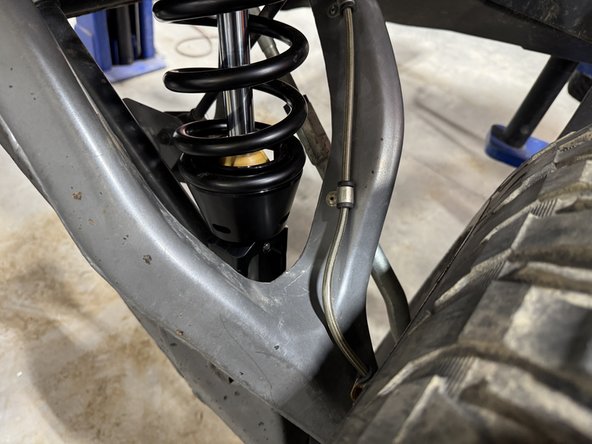

The lower rebound adjuster need to be oriented facing the outside of the vehicle. Fork can be turned manually.
-
-
-

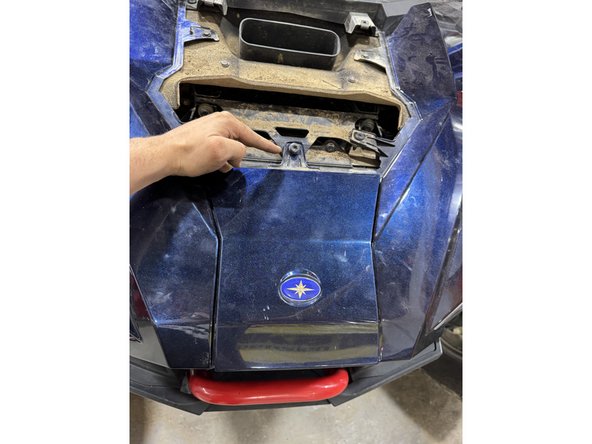

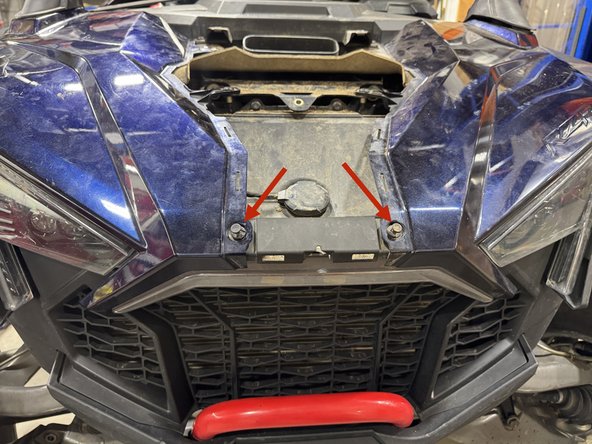

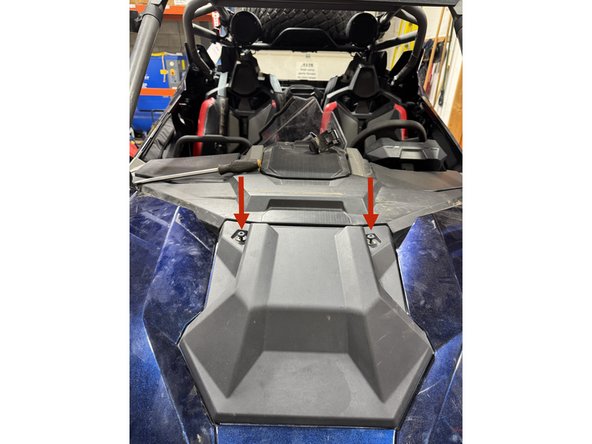

Remove the front plastic cover.
-
-
-

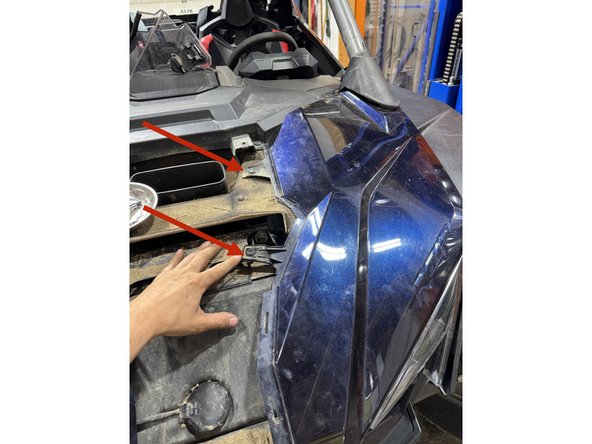

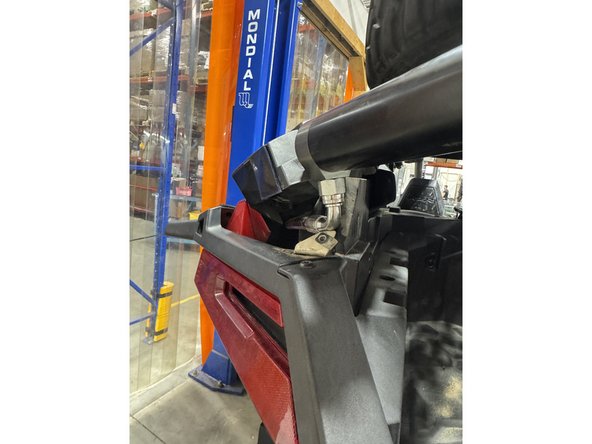

Lift the side panel as shown to make room for the reservoir.
-

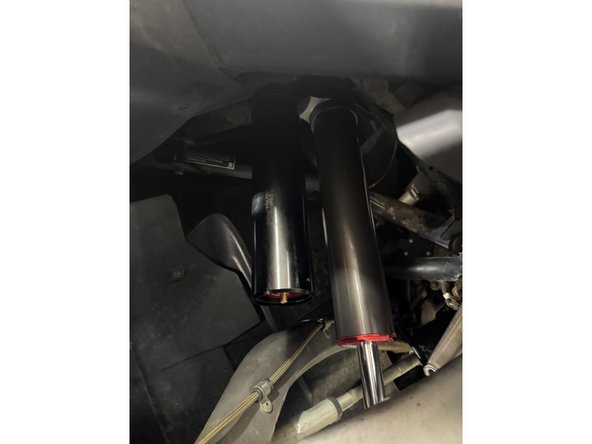

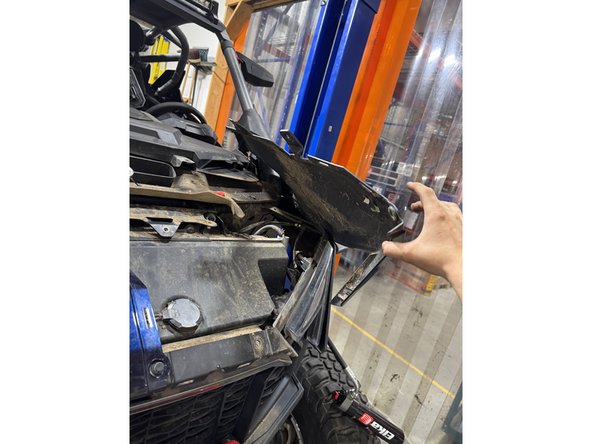

Pass the reservoir thru the fender as shown.
-
-
-

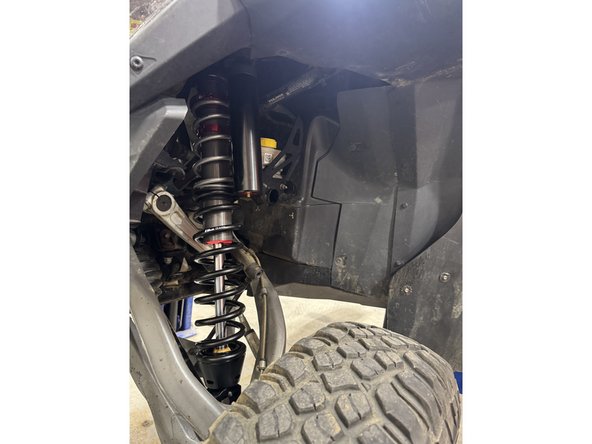

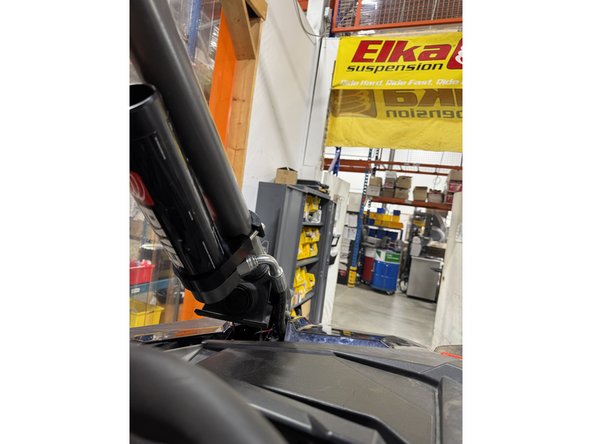

Install front remote reservoir shocks with the hoses facing the rear of vehicle. (Left side shown).
-

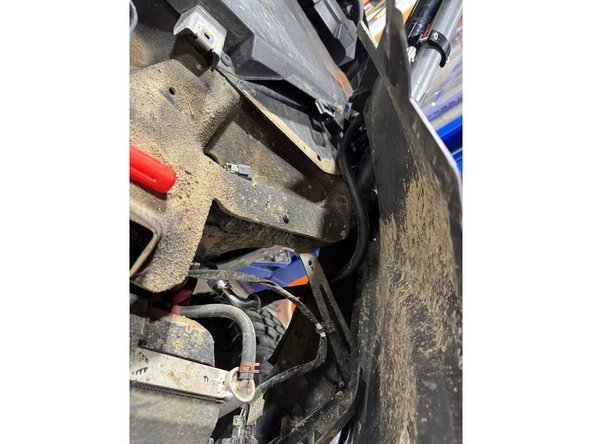

Attach the reservoirs on the roll cage as shown.
-

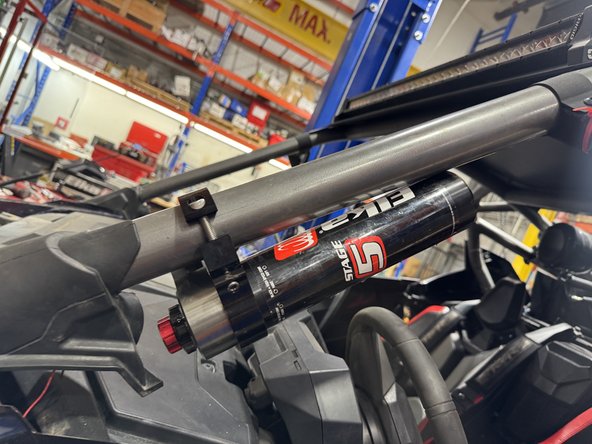

Install the reservoir clamp close to the reservoir head as shown. Clamping reservoir in the middle of the rezzy can cause internal floating piston friction.
-
The shock lower rebound adjuster need to be oriented facing the outside of vehicle. Fork can be turned manually.
-
-
-

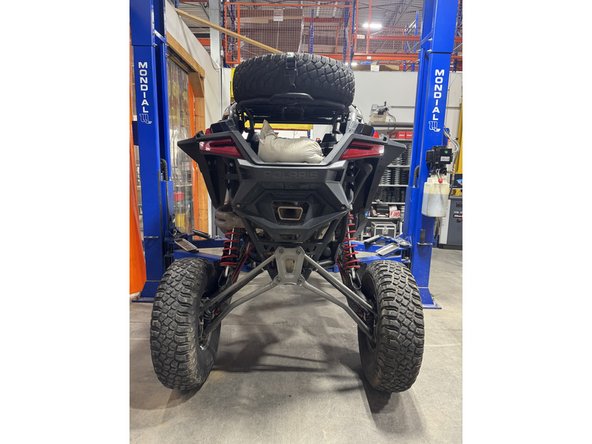

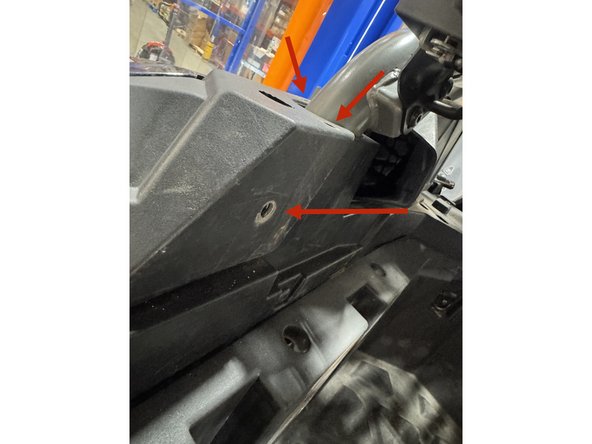

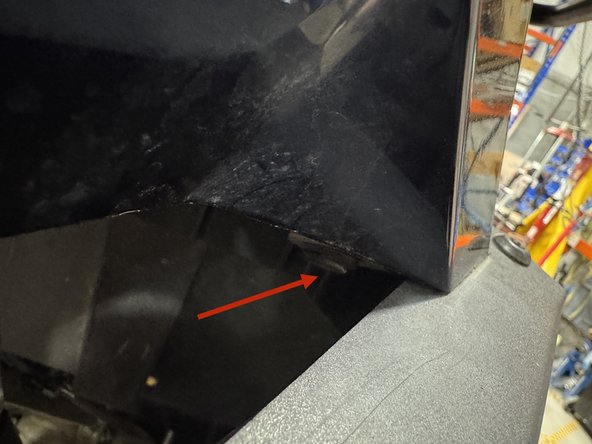

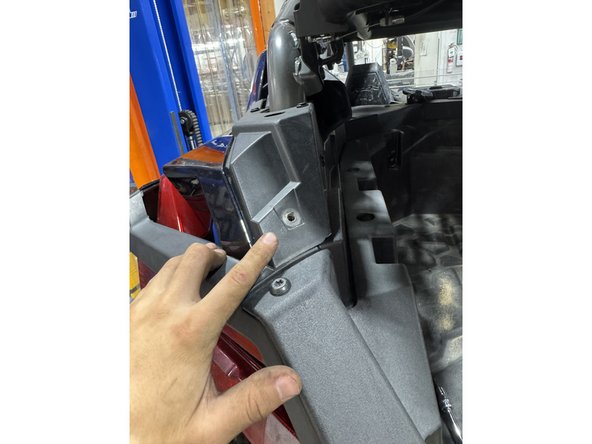

Remove the rear side panel as shown.
-
-
-

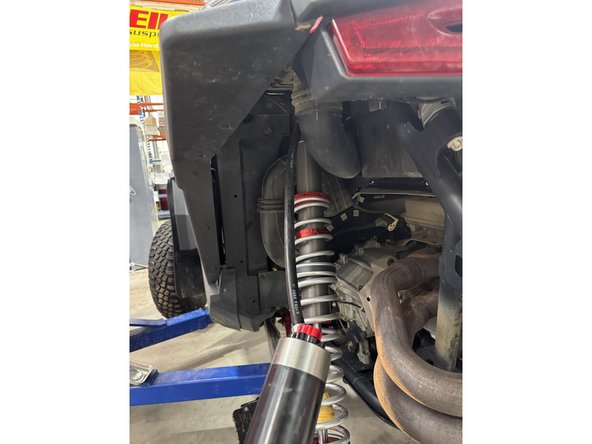

Install rear remote reservoir shocks with the hoses facing the rear of vehicle.
-
Lift the side panel as shown to make room for the reservoir.
-

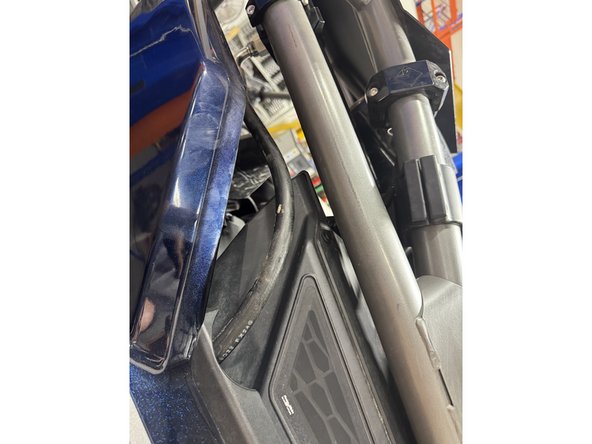

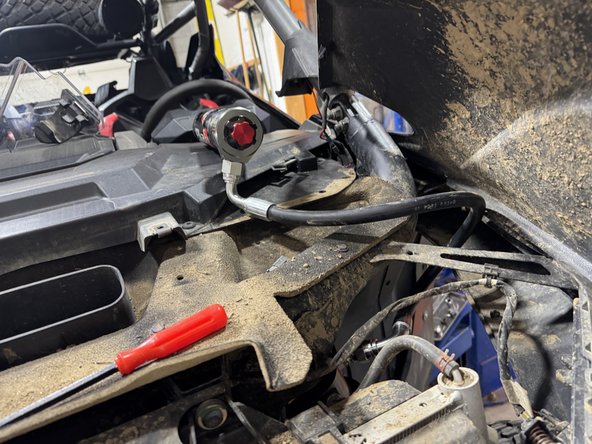

Pass the reservoir thru the fender as show.
-
Install the reservoir clamp close to the reservoir head as shown. Clamping reservoir in the middle of the rezzy can cause internal floating piston friction.
-
-
-

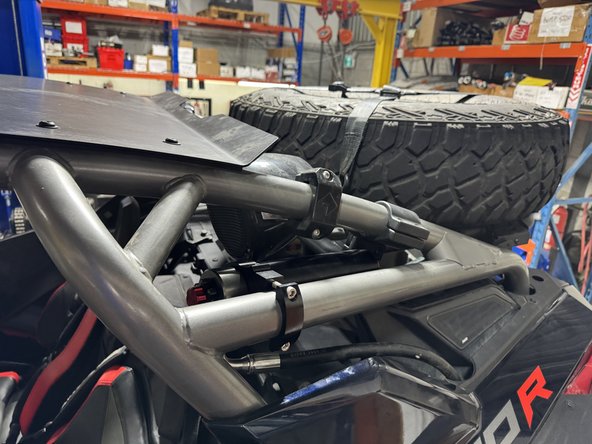

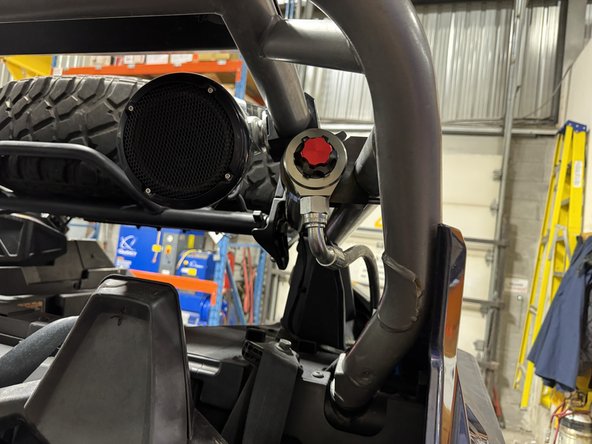

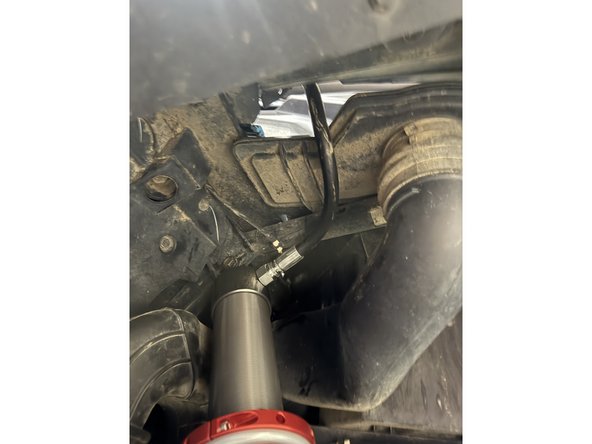

On the right side, make sure the hose clear the air intake as shown.
-
