FLS-217040_revA

Major VersionM

by Sebastien Blain

  1. Lift the vehicle off the ground, then remove front tires. Remove the bolts beside shocks that hold the brake lines (showed by yellow circle) on each side to ensure that will not be damaged and stretched during installation.
    • Lift the vehicle off the ground, then remove front tires.

    • Remove the bolts beside shocks that hold the brake lines (showed by yellow circle) on each side to ensure that will not be damaged and stretched during installation.

  2. Supporting the lower front axle is recommended to remove tension on the shock absorber attachment points. Remove sway-bar link on both sides to allow front axle to drop down much as it can. Remove lower and upper shock bolts.
    • Supporting the lower front axle is recommended to remove tension on the shock absorber attachment points.

    • Remove sway-bar link on both sides to allow front axle to drop down much as it can.

    • Remove lower and upper shock bolts.

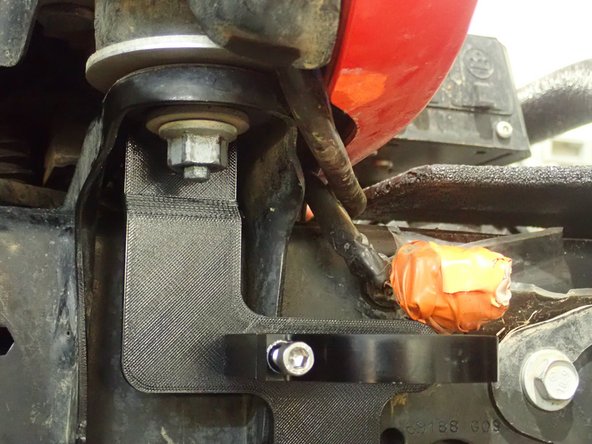

  3. SHOCKS WITH RESERVOIR: Remove nut that hold the front cab support, then install reservoir bracket as shown. ( Right side shown) Place bracket to be parallel to frame, then torque nut at 50 ft/lb.

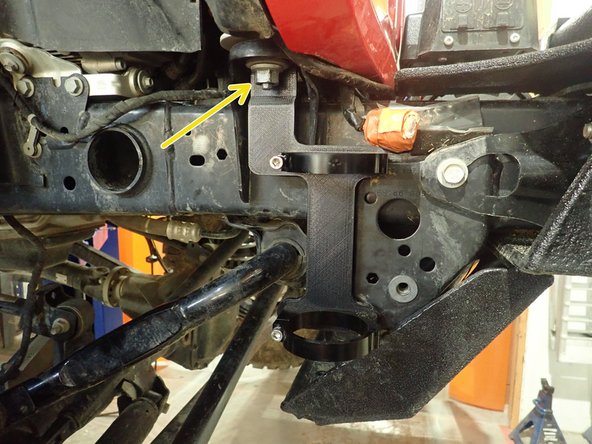

    • SHOCKS WITH RESERVOIR:

    • Remove nut that hold the front cab support, then install reservoir bracket as shown. ( Right side shown)

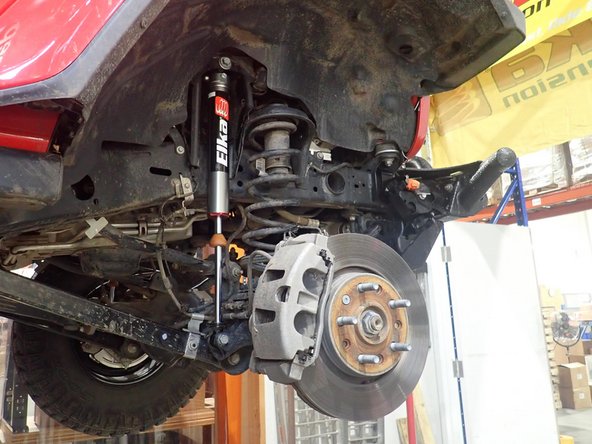

    • Place bracket to be parallel to frame, then torque nut at 50 ft/lb.

    • SHOCKS WITHOUT RESERVOIR:

    • No bracket needed for shocks without reservoir, just install shocks with shock's head upside as shown.

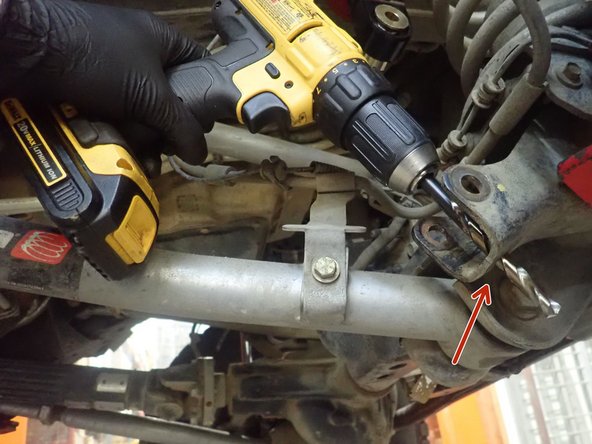

  4. FOR 3 INCHES (66mm) BODY SHOCKS ONLY: For 3" body shocks, a relocating lower bracket must be installed. First, enlarge existing lower hole in the lower oem bracket as shown in picture. Use a 10mm or 7/16" drill.
    • FOR 3 INCHES (66mm) BODY SHOCKS ONLY:

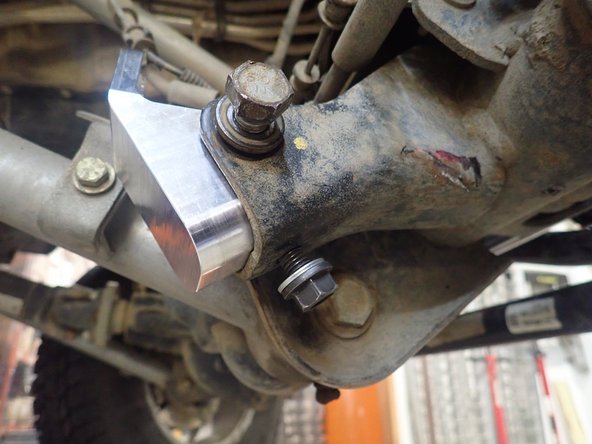

    • For 3" body shocks, a relocating lower bracket must be installed.

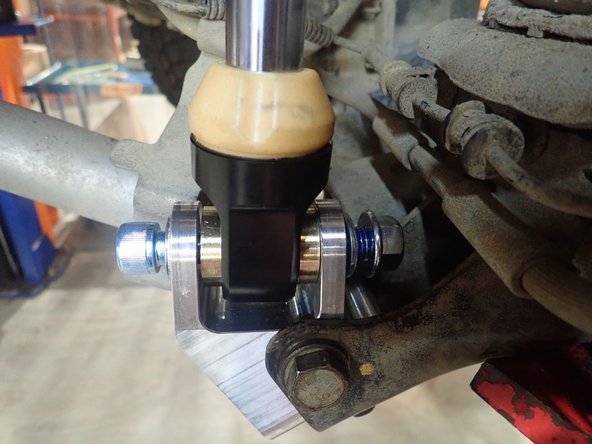

    • First, enlarge existing lower hole in the lower oem bracket as shown in picture. Use a 10mm or 7/16" drill.

    • Install bracket as shown (right side shown), and use oem lower shock bolt to hold bracket in place, do not tighten for now.

    • Use supplied bolt and washer and fix bracket by the lower hole, then torque the bolt at 60 Lb-Ft. Torque the upper bolt at 80 Lb-Ft.

    • Use supplied bolt to fix lower shock mount in next step as shown. Use threads locker then torque bolt at 70 Ft-Lb.

  5. Cut plastic fenders as shown to avoid shock's hose damage at long term. (right side shown) Then install supplied washer on UPPER BOLT as shown by red arrow.
    • Cut plastic fenders as shown to avoid shock's hose damage at long term. (right side shown)

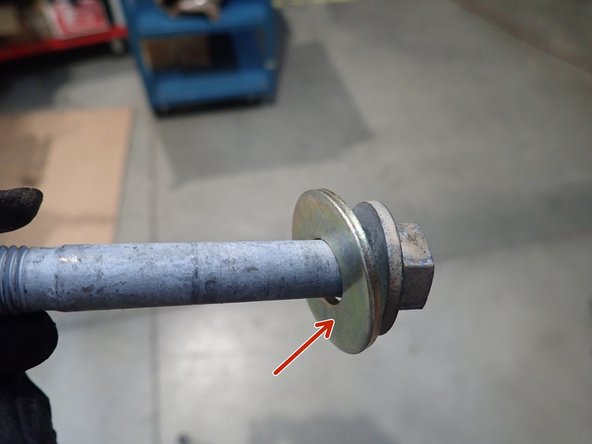

    • Then install supplied washer on UPPER BOLT as shown by red arrow.

  6. Place shock with the hose facing front of vehicle in place (right side shown)and install upper bolt, then push on lower shock's shaft or move lower axle to install lower bolt. Torque bolts at 80 ft/Lb. Sit reservoirs into bracket's clamps, then place the reservoir in a way to place hose properly as shown. Hose must be closest to the frame possible without however rubbing on frame. When reservoir is placed properly, apply threads locker on clamp's bolts and torque them at 10 ft/Lb
    • Place shock with the hose facing front of vehicle in place (right side shown)and install upper bolt, then push on lower shock's shaft or move lower axle to install lower bolt. Torque bolts at 80 ft/Lb.

    • Sit reservoirs into bracket's clamps, then place the reservoir in a way to place hose properly as shown. Hose must be closest to the frame possible without however rubbing on frame.

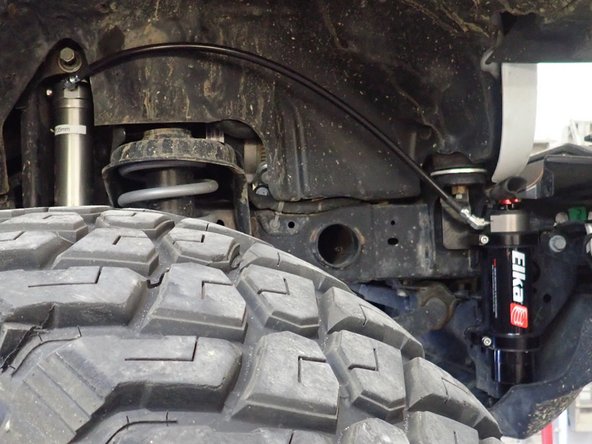

    • When reservoir is placed properly, apply threads locker on clamp's bolts and torque them at 10 ft/Lb

    • Re-install sway-bar links, brake lines and wheels, then torque all bolts at manufacturer's specs.

    • ALIGNMENT IS CRITICAL: A professional alignment must be performed before driving this vehicle at highway speeds. Do not attempt to drive your vehicle after this install without having the alignment readjusted to factory specs.

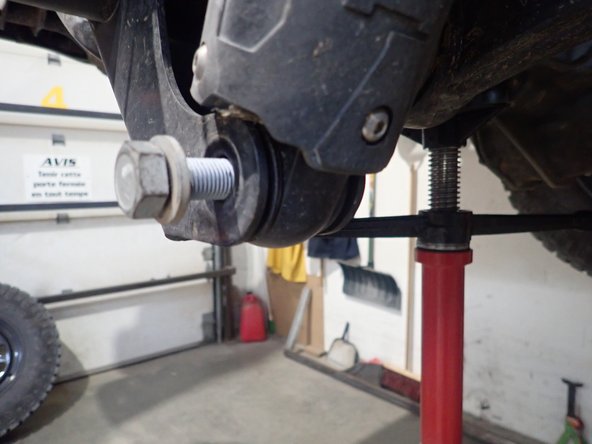

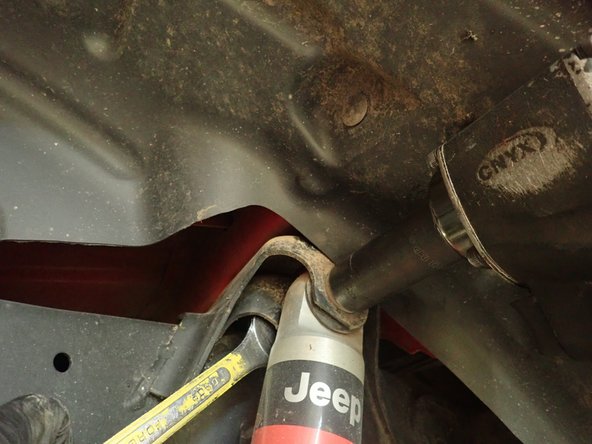

  7. Supporting the lower rear axle is recommended to remove tension on the shock absorber attachment points. Remove upper and lower shock bolts, then remove OEM shocks. Remove upper and lower shock bolts, then remove OEM shocks.

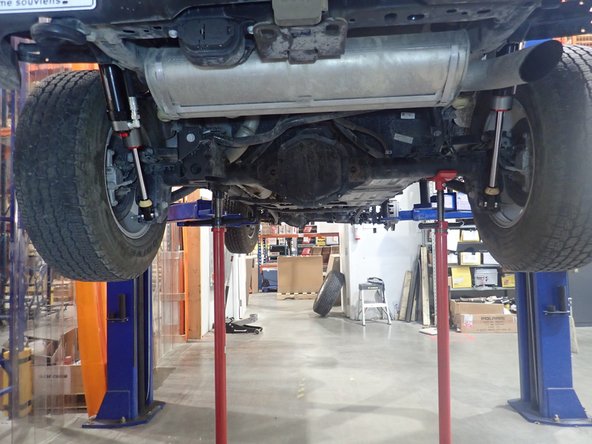

    • Supporting the lower rear axle is recommended to remove tension on the shock absorber attachment points.

    • Remove upper and lower shock bolts, then remove OEM shocks.

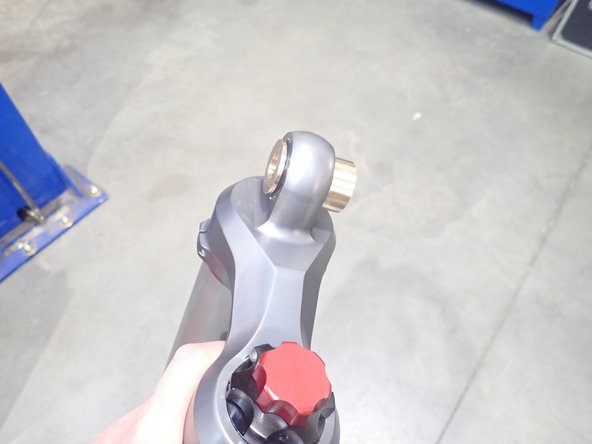

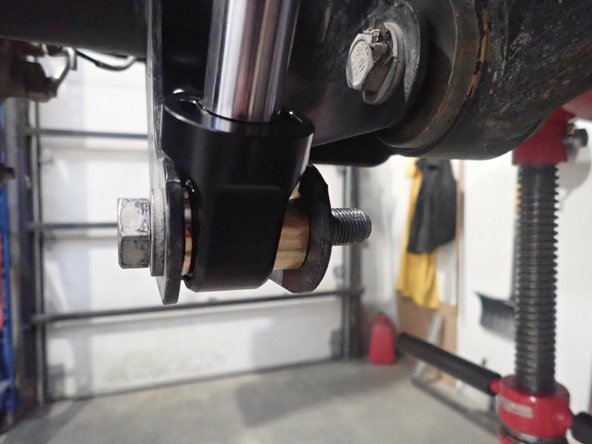

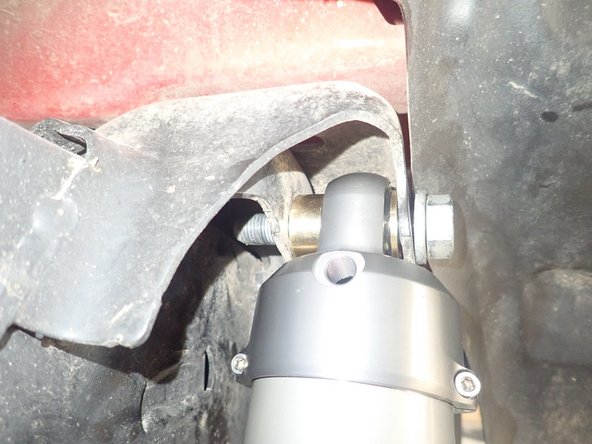

  8. FOR 2.5" BODY SHOCKS ONLY: Offset spacers are used to get more clearance between frame and piggyback head. The larger spacers must face inside the vehicle to bring shocks further of the frame as shown. (right side shown) Offset spacers are used to get more clearance between frame and piggyback head. The larger spacers must face inside the vehicle to bring shocks further of the frame as shown. (right side shown)
    • FOR 2.5" BODY SHOCKS ONLY:

    • Offset spacers are used to get more clearance between frame and piggyback head. The larger spacers must face inside the vehicle to bring shocks further of the frame as shown. (right side shown)

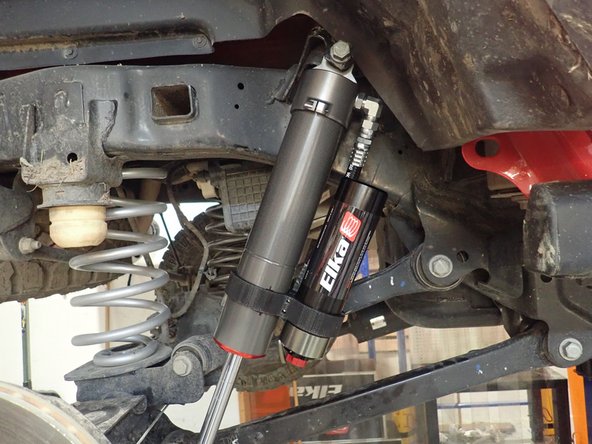

  9. Install new Elka rear shocks with the reservoir upside and facing the front of vehicle. (Right side shown). Shocks without reservoir must be installed with shock's head upside as shown. Torque bolts at 80 Ft/Lb.

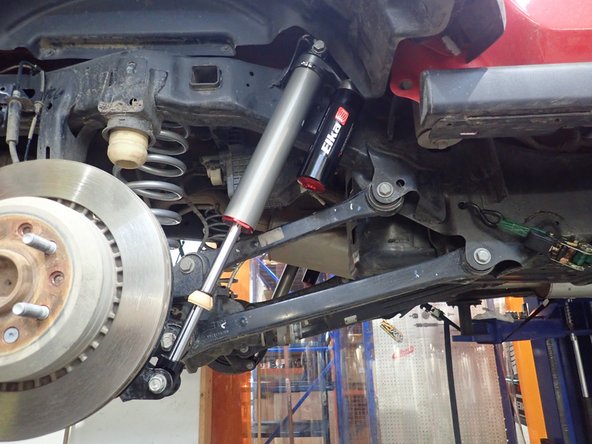

    • Install new Elka rear shocks with the reservoir upside and facing the front of vehicle. (Right side shown).

    • Shocks without reservoir must be installed with shock's head upside as shown.

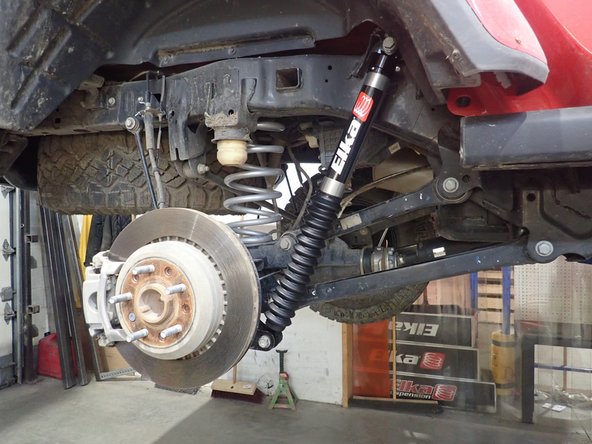

    • Torque bolts at 80 Ft/Lb.
