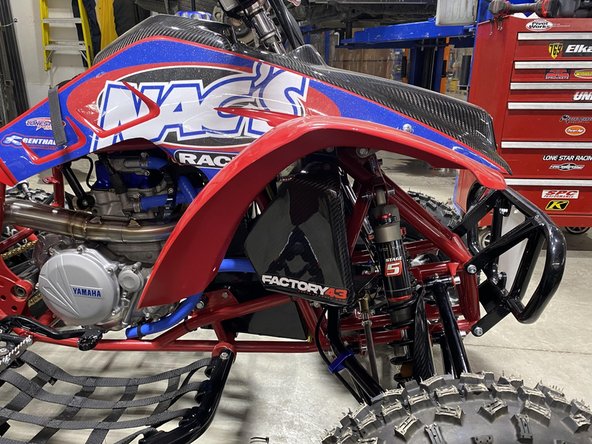

Install front shock with the piggyback reservoir up as shown.
-
The lower eyelet can be turned to align rebound adjuster facing rear of atv.
-
-
-

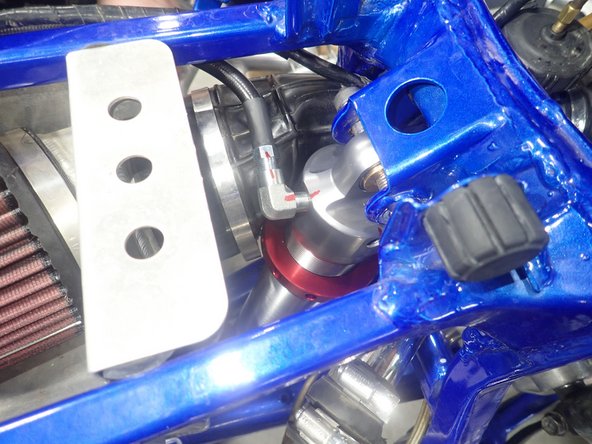

Remove airbox tube.
-

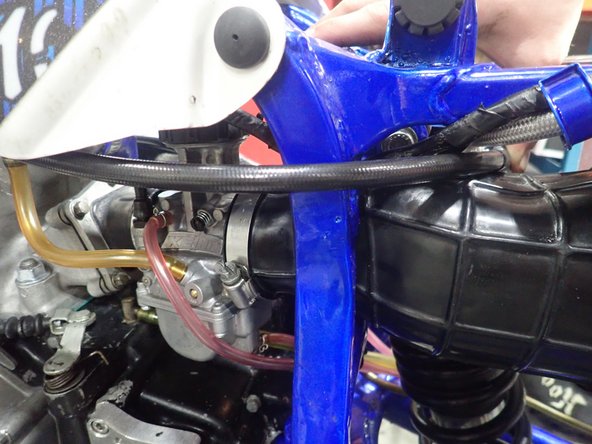

Install shock with the hose fitting facing rear of atv.
-

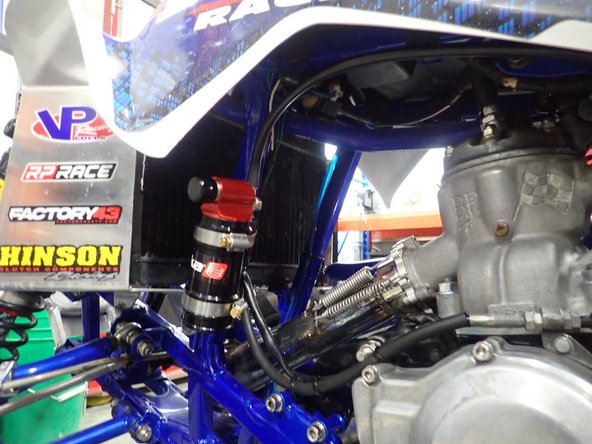

Pass the hose along the frame as shown and fix reservoir to the front of atv as shown with supplied rubber mount kit. (Legacy reservoir shown)
-
-
-
Remove airbox tube.
-
Install shock with hose fitting facing rear of atv.
-

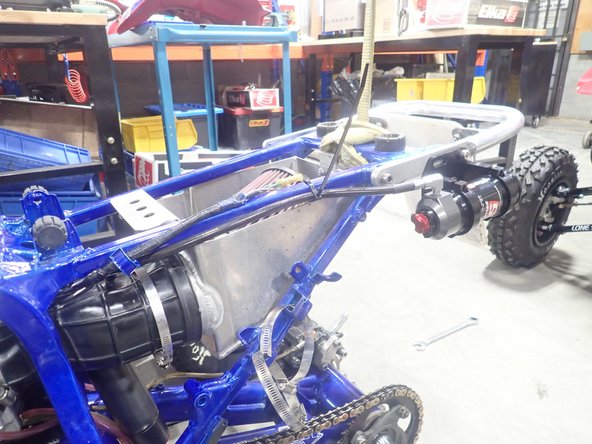

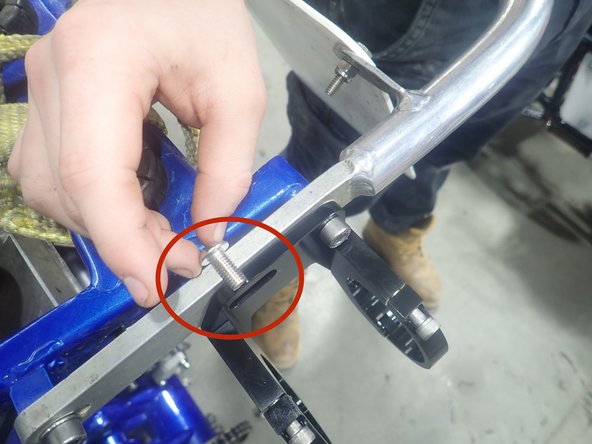

Install bracket kit with supplied bolts on rearmost hole of grab bar. To secure bracket, drill grab bar and use rounded head supplied bolt to fix in the oblong hole as shown by red circle.
-
Sit reservoir in bracket and torque hex cap screws at 8 FT-Lb.
-
-
-

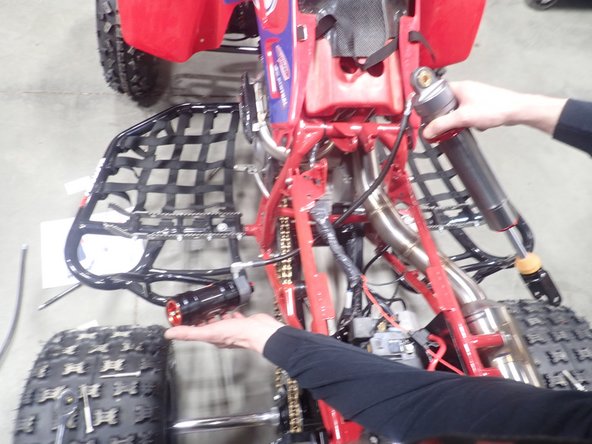

Remove airbox and airbox tube.
-

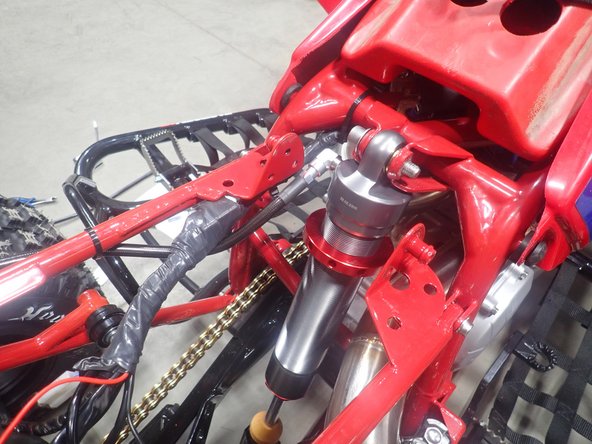

Pass the reservoir in the left side of subframe and install the shock with the hose facing the rear of atv.
-

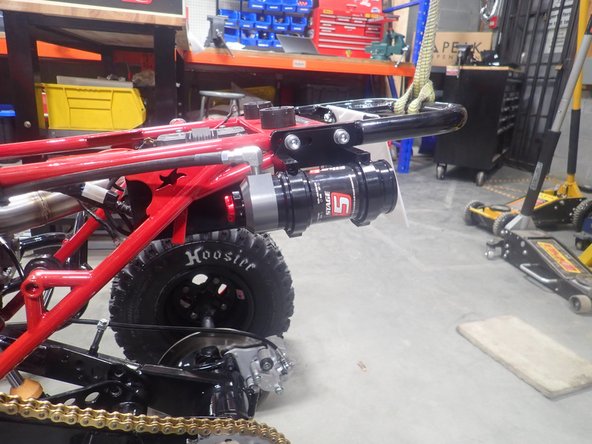

Install rear bracket on the grab bar with supplied bolts.
-
Sit reservoir in bracket and torque hex cap screws at 8 FT-Lb.
-
