Lift the vehicle off the ground, then remove the wheels.
-
Remove the bolt that holds the brake line on each side to ensure that it will not be damaged and stretched during installation.(right side show)
-
Remove the bolt that holds the ABS sensor of the knuckle.
-
-
-
Remove the skid plate.
-
Remove the sway bar link on both sides.
-
Remove the sway bar.
-
-
-

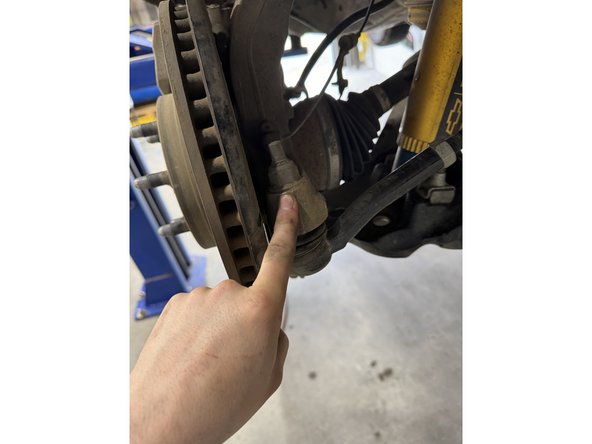

Remove the nuts from the tie rod.
-

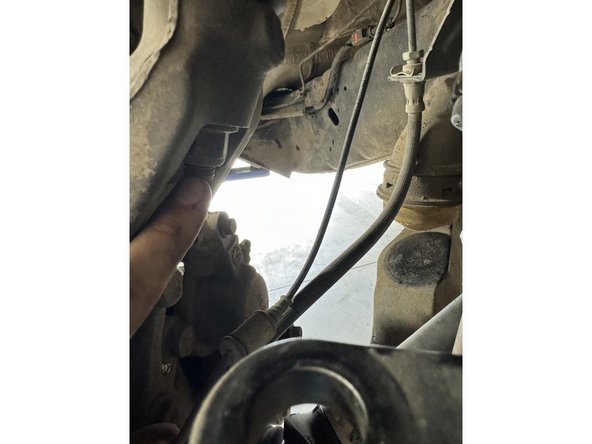

Remove upper arm ball joint nut and seperate it from steering knuckle.
-

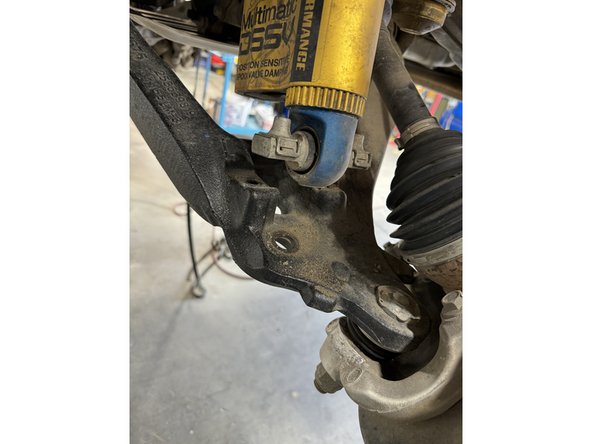

Remove the bolts from the lower shock mounts.
-
-
-

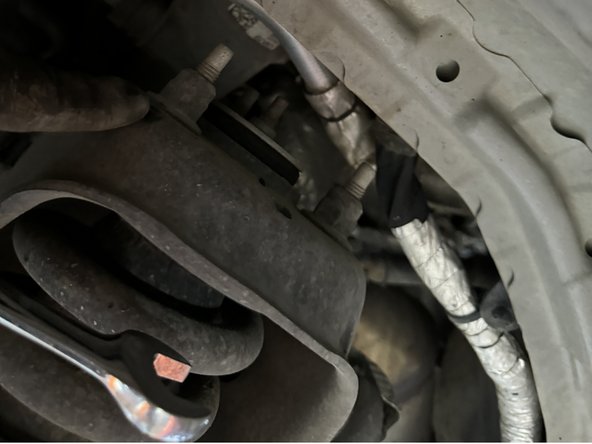

Remove the 3 nuts of the upper shock.
-

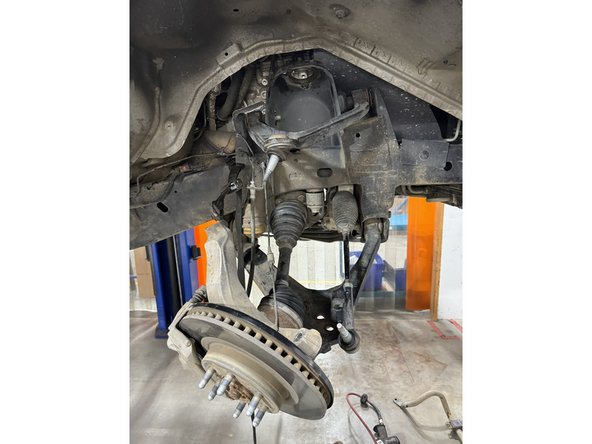

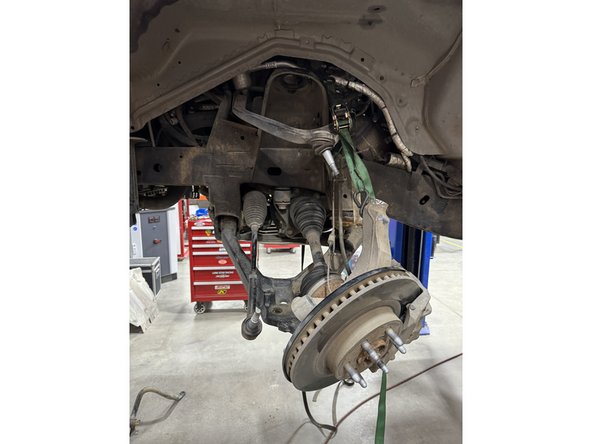

Remove the shock from the vehicle.
-
-
-
Clean the sway bar area.
-

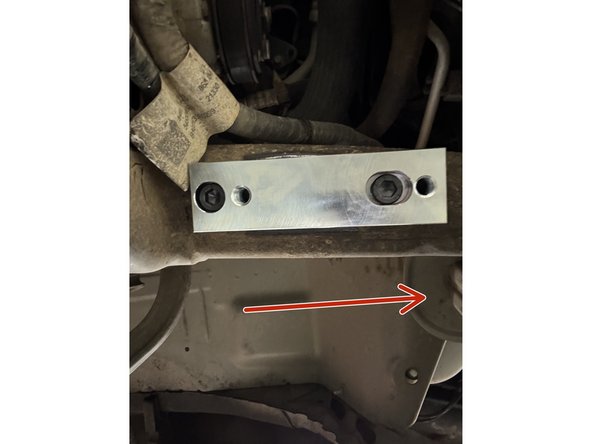

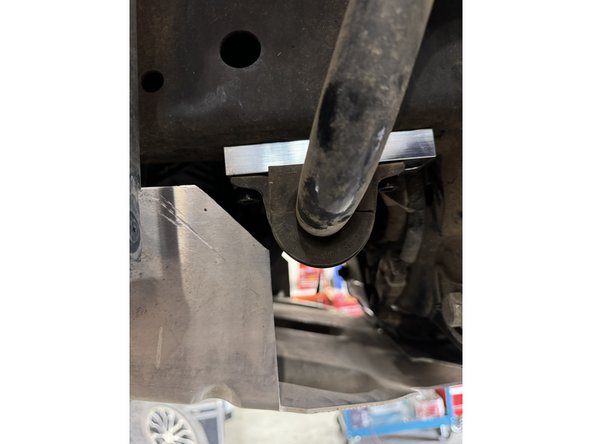

Install the sway bar relocation kit. Make sure the block is installed as shown. The red arrow is pointing to the front of the truck.
-
Install the relocation kit on both sides.
-
-
-

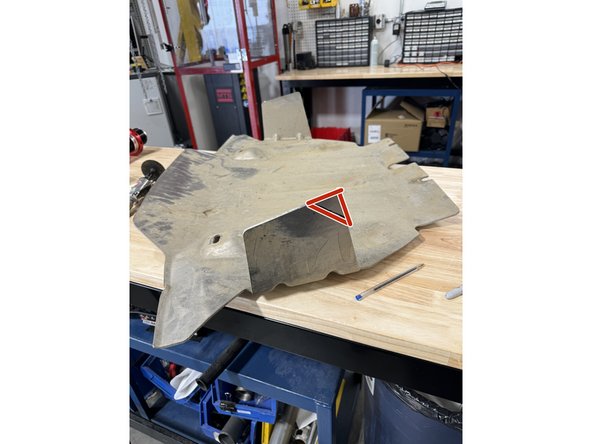

The skid plate need to be trimed before reinstall.
-

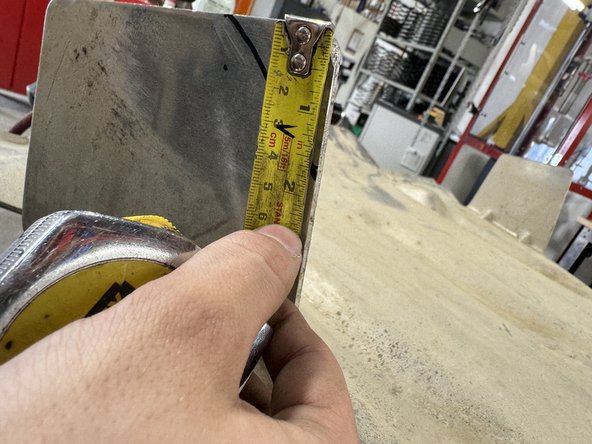

Cut the red triangle of the skid plate on both sides.
-

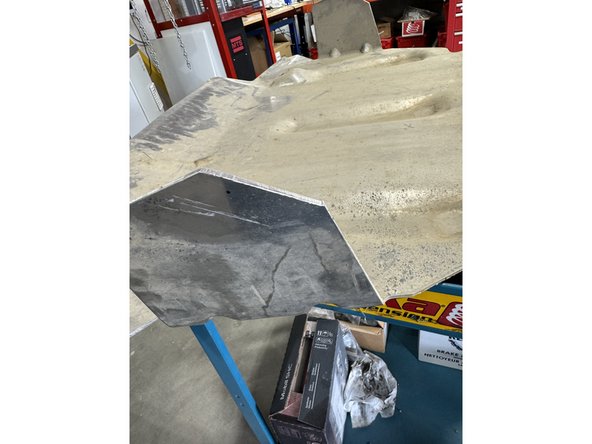

Mesure 1.5'' on both sides to make the cutting line.
-
-
-

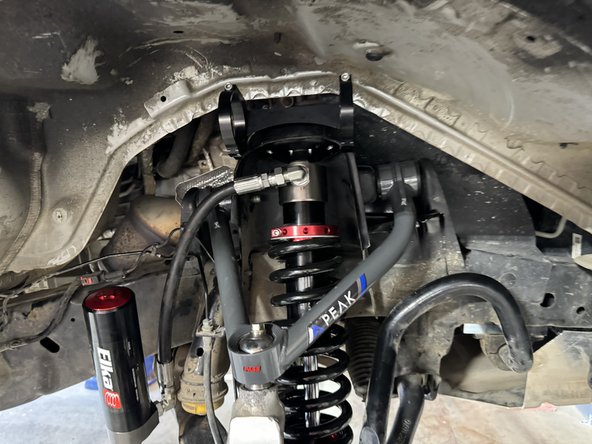

Install the Elka shocks using provided lower bolts and the provided upper bolts. Hoses must face the rear of vehicle as shown (right side shown).
-

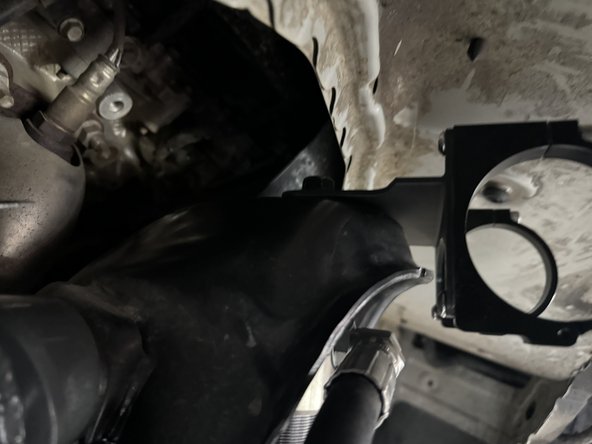

Install the bracket of the reservoir on top of the shock mount.
-

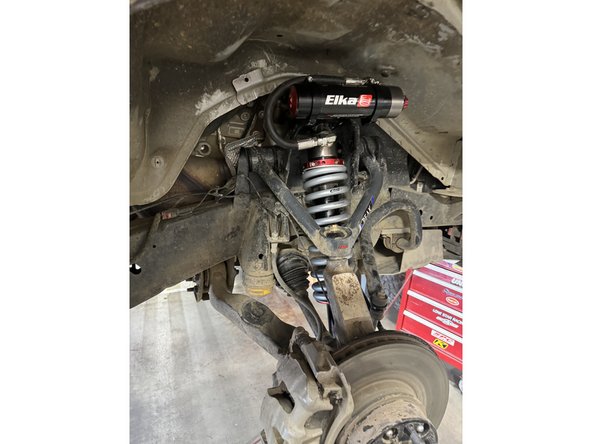

The bracket of the reservoir is fixed with the same bolts of the top plate.
-
Install the 3 uppers bolts and torque to 35 Ft-Lbs.
-
-
-

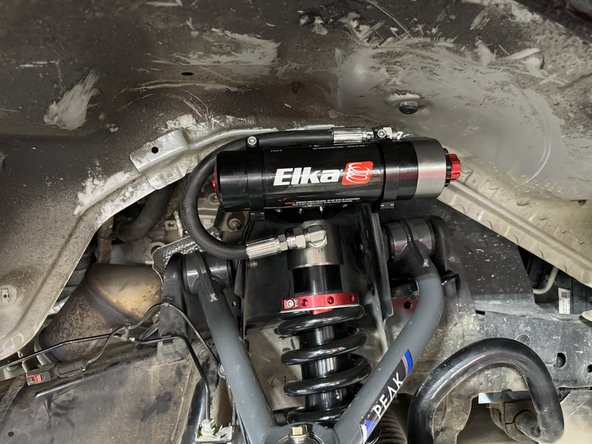

Sit the reservoir into the bracket clamps, then place the reservoir in such a way as to place the hose properly. BE CAREFUL TO NOT OVERBEND THE HOSE OR CREATE RUBBING ON FRAME.
-

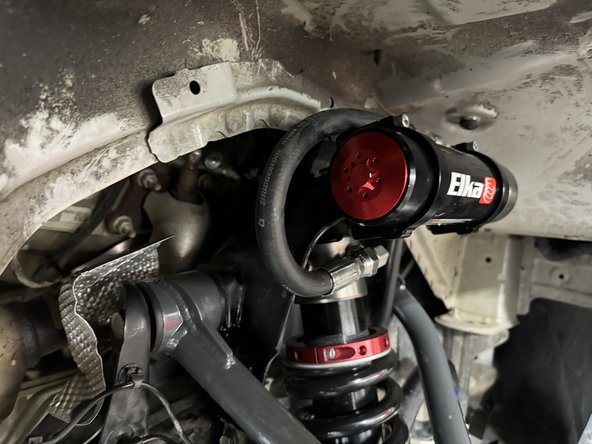

When the reservoir is placed properly, torque bracket's bolts at 10 Ft-Lb.
-
-
-
Reinstall the lower pin bolts and torque to 50 Ft-Lb.
-
Reassemble the knuckle with the upper control arm. Torque the upper control arm nut to 70 Ft-Lb.
-
Reassemble the tie rod end, then torque the nut to 70 Ft-Lb.
-
Reinstall the brake line bolts.
-
Reinstall the ABS line bolts.
-
Reinstall the sway bar.
-
Reinstall the sway bar link on both sides.
-
-
-

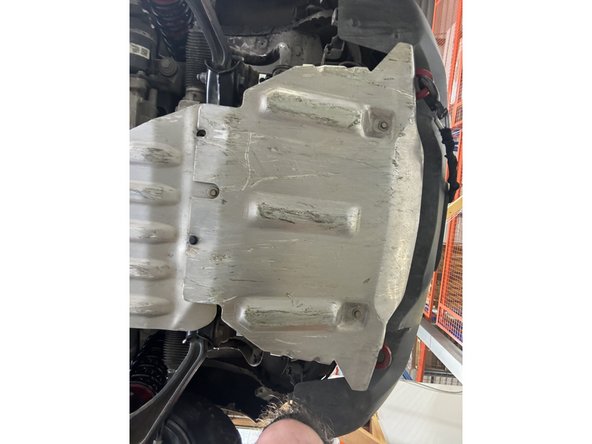

Reintall the skid plate.
-

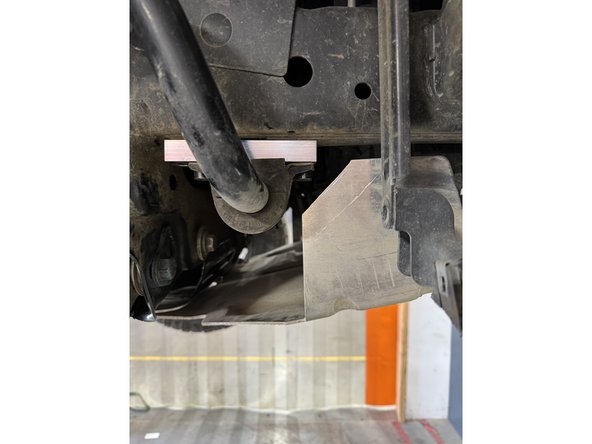

ALIGNMENT IS CRITICAL: A professional alignment must be performed before driving this vehicle at highway speeds. Do not attempt to drive your vehicle after this install without having the alignment readjusted to factory specs.
-
-
-

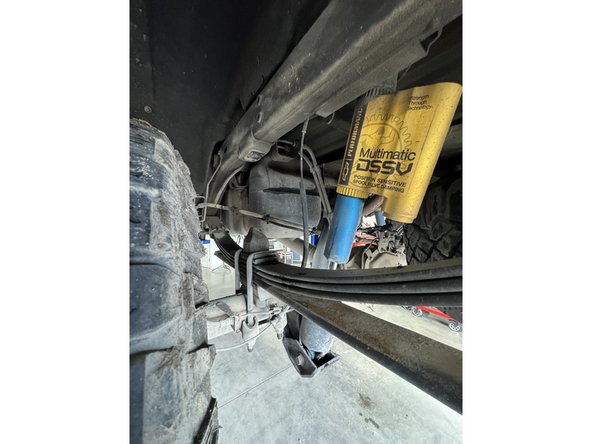

Remove upper and lower bolts from OEM shocks. Keep OEM bolts to install Elka shocks.
-
-
-

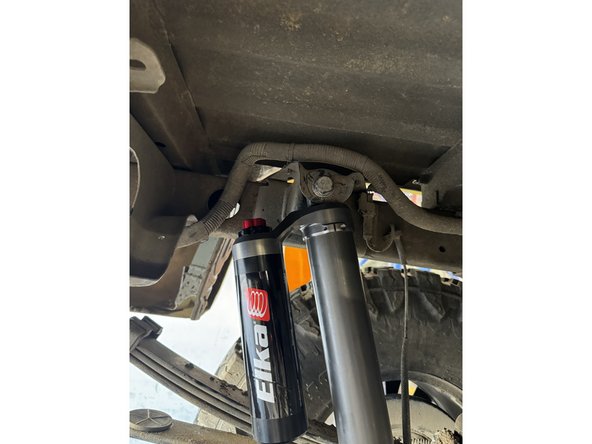

Both sides : Install the rear shock with the reservoir facing the rear of the vehicle.
-

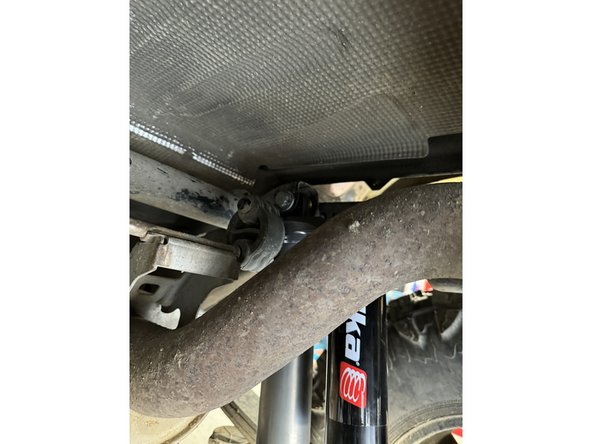

Using an underhoist stand or a jack, lift rear axle to be able to install lower bolt.
-

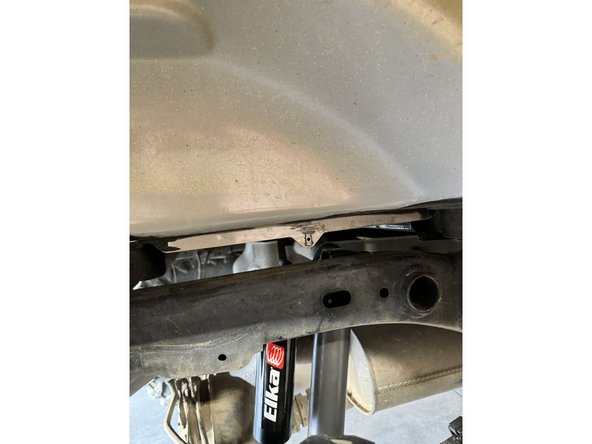

Torque all bolts as manufacturer's specs.
-
