Lift the vehicle off the ground, then remove the wheels.
-
Remove the bolts that holds the ABS sensor line. the 4 bolts have been pointed by a red arrow. (right side show)
-
-
-
Remove the sway bar link on both side. The link is show by a red arrow. (right side show)
-
Remove the nuts from the tie rod
-
Remove upper arm ball joint nut and seperate it from steering knuckle.
-
-
-

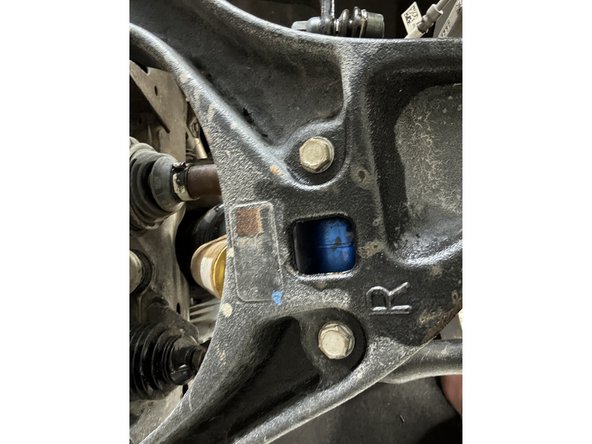

Remove the bolts from the lower shock mounts
-

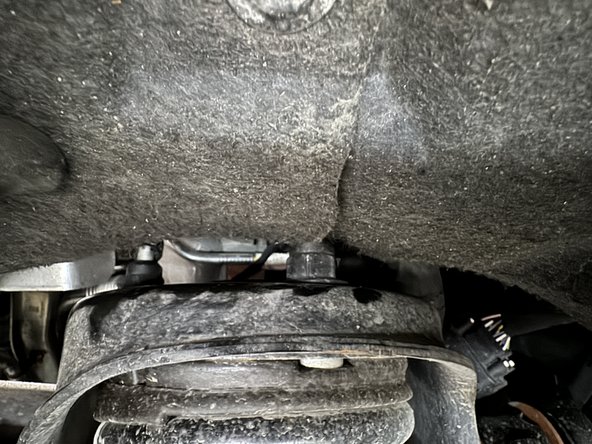

Remove the 3 nuts of the upper shock.
-

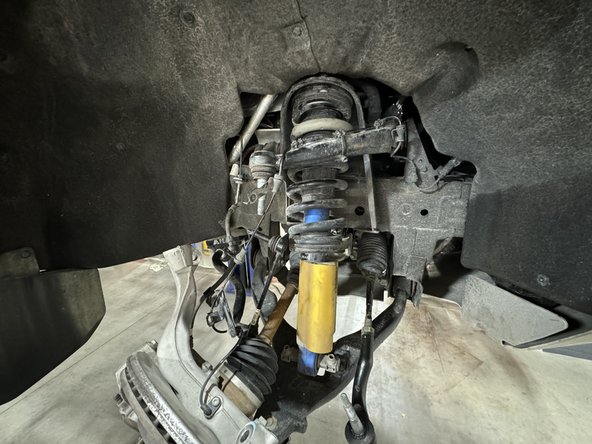

Remove the shock from the vehicule.
-
-
-

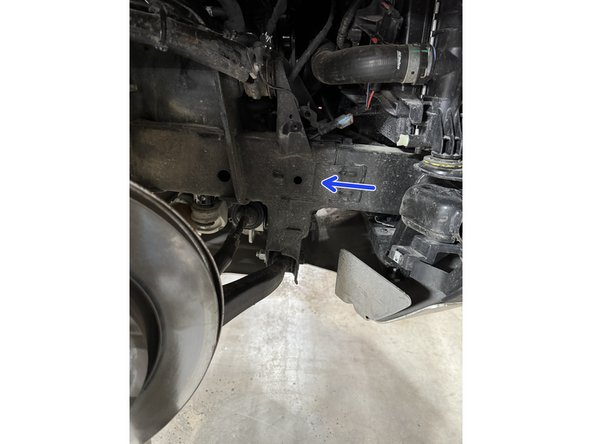

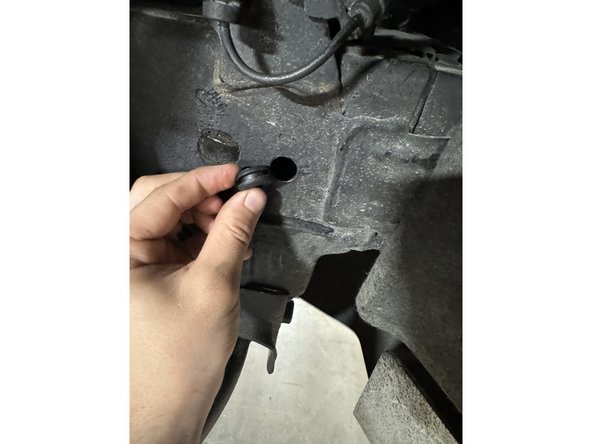

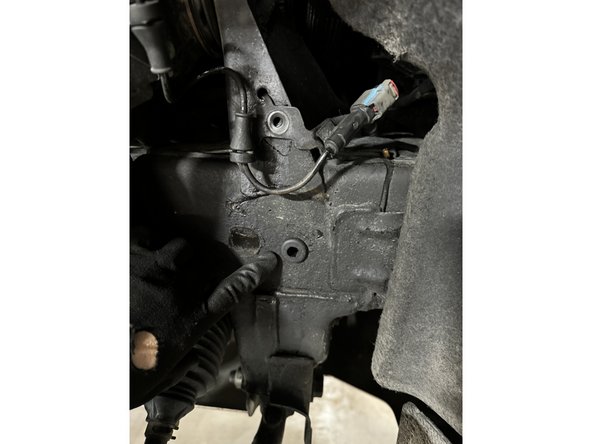

Install A grommet on both sideS as show in the picture (right side show)
-
-
-

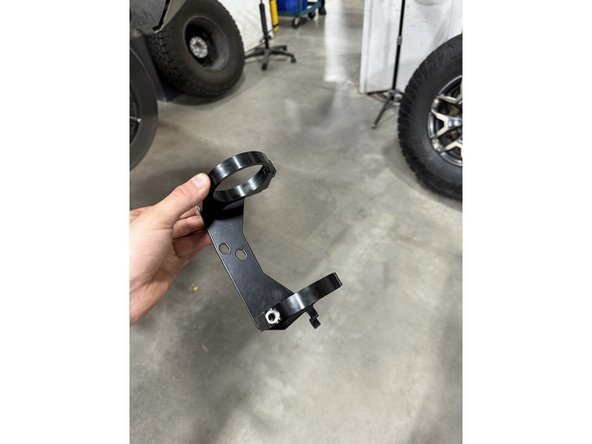

Use the bracket show in the picture for the right side.
-

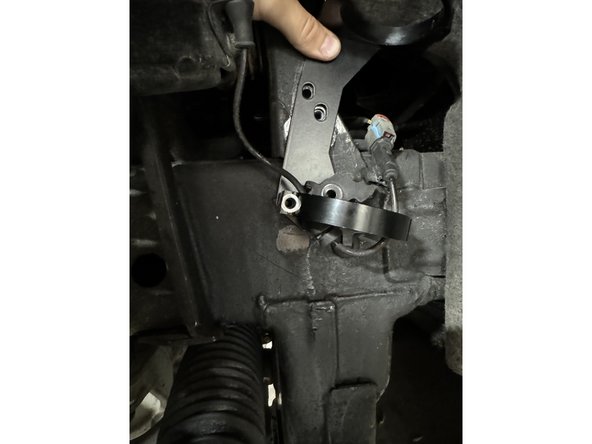

Insert the bended tab into the grommet and install the bracket as show in the picture. Make sure the bracket passes under the ABS line.
-

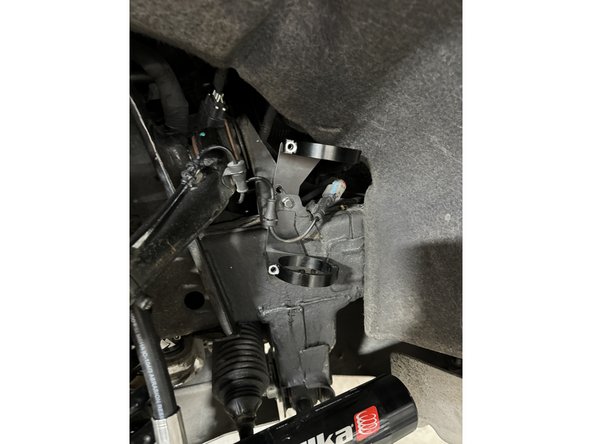

Line up the hole in the bracket with the factory hole in the frame and reinstall the ABS bracket as show in the picture.
-
-
-

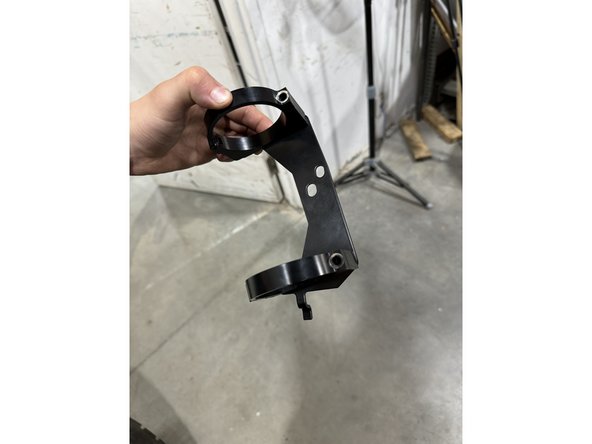

Use the bracket show in the picture for the left side.
-

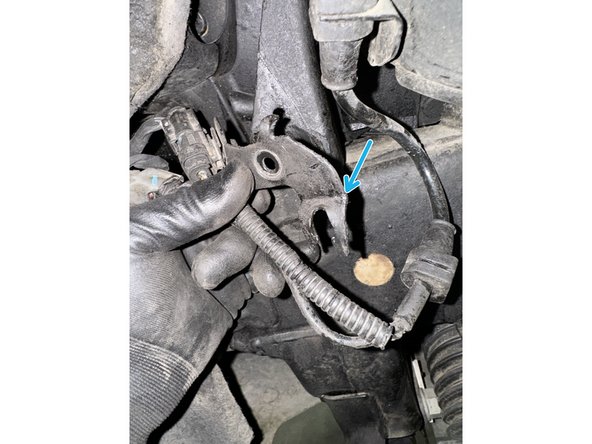

unfold the clip of the abs wires bracket to fit the bracket proprely.
-

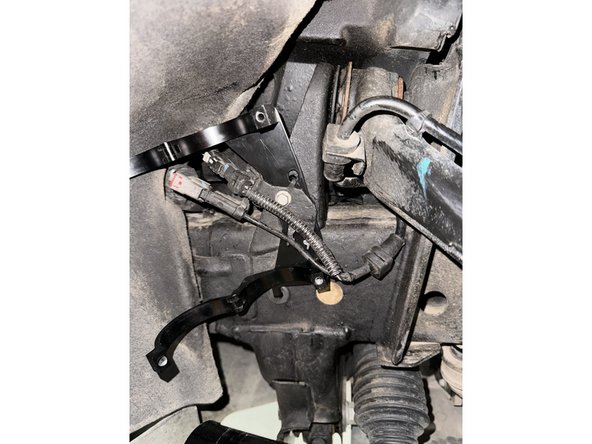

Install the bracket in the factory hole as the right side.
-
-
-

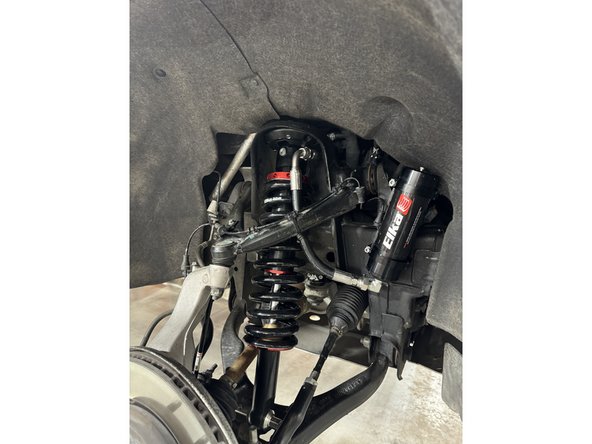

Install the Elka shocks using provided lower bolts and the provided upper bolts. Hoses must face the front of vehicle as shown (right side shown).
-

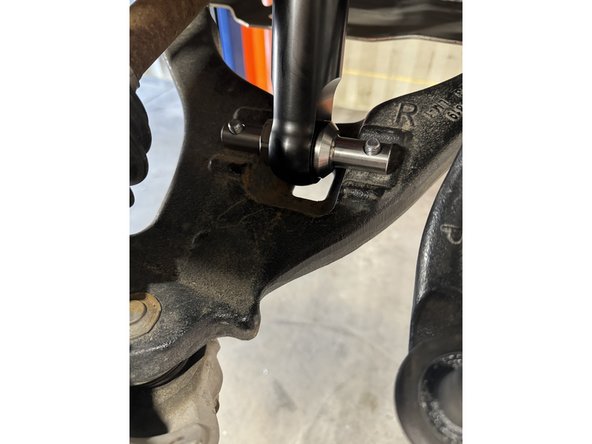

Reinstall the lower pin bolt and torque to 50 Ft-Lb.
-

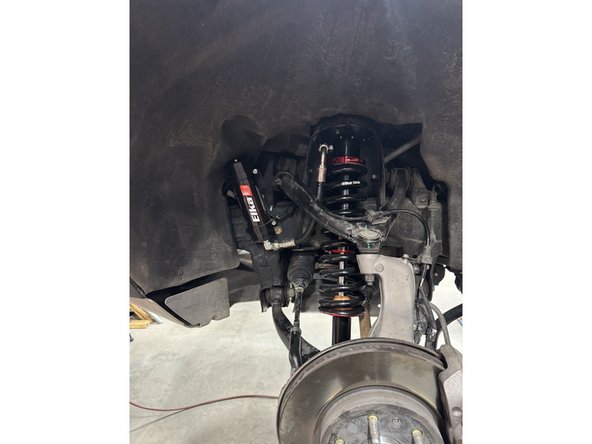

Install the 3 uppers bolts and torque to 35 Ft-Lbs.
-
Reassemble the knuckle with the upper control arm. Torque the upper control arm nut to 70 Ft-Lb.
-
Reassemble the tie rod end, then torque the nut to 70 Ft-Lb.
-
Reinstall the sway bar link
-
Reinstall the ABS line bolts.
-
Install the reservoir in the the bracket. When the reservoir is placed properly, torque bracket's bolts at 10 Ft-Lb.
-
-
-

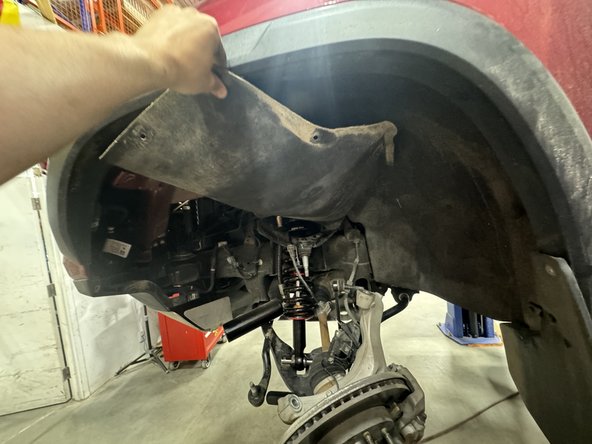

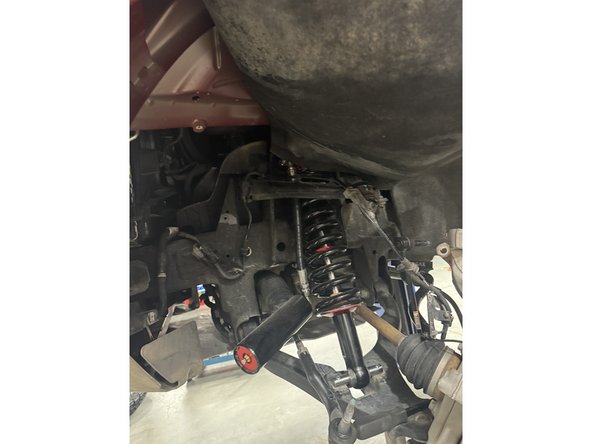

Left side : remove the fender to help reach the 3 upper bolts
-
-
-

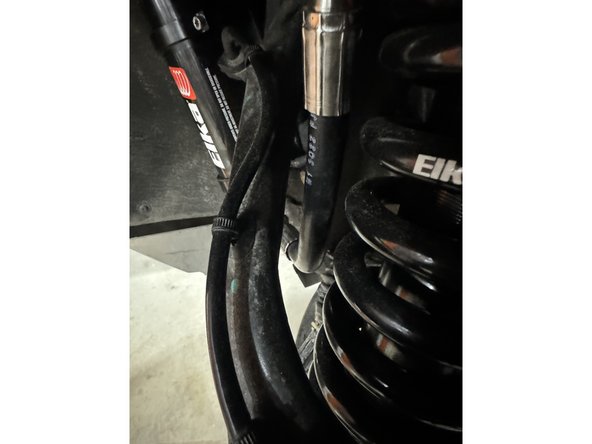

IMPORTANT : Make sure the hose does not touch anything. If needed, rotate the reservoir in the bracket to clear the hose.
-

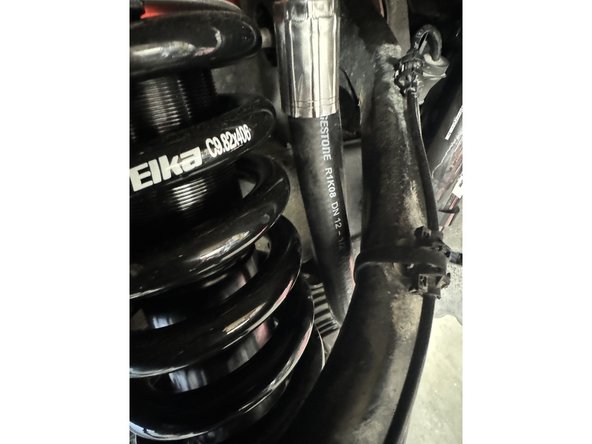

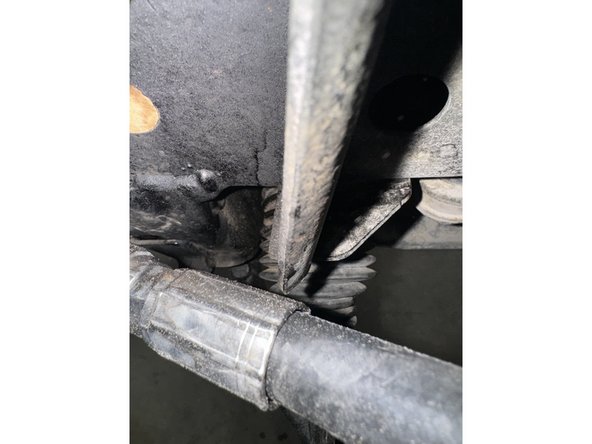

ALIGNMENT IS CRITICAL: A professional alignment must be performed before driving this vehicle at highway speeds. Do not attempt to drive your vehicle after this install without having the alignment readjusted to factory specs.
-
-
-

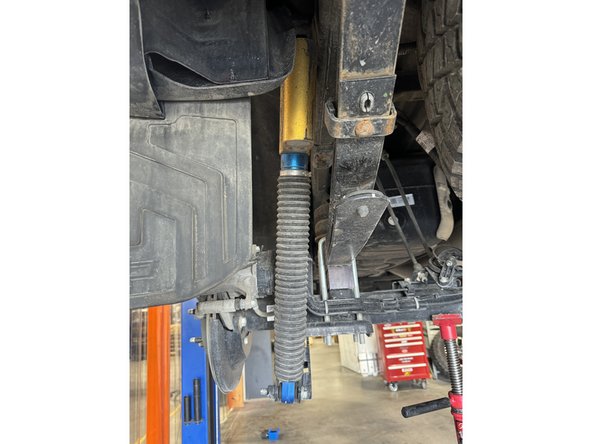

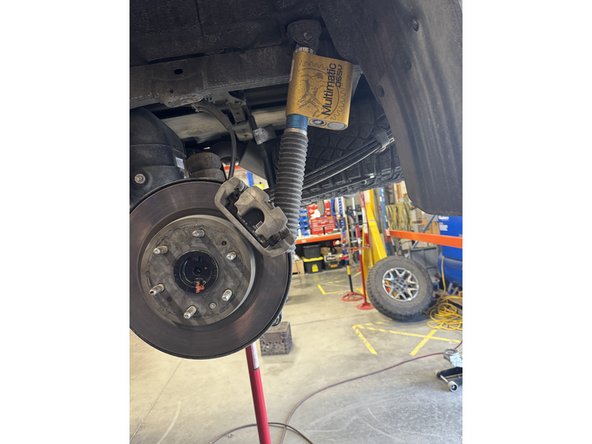

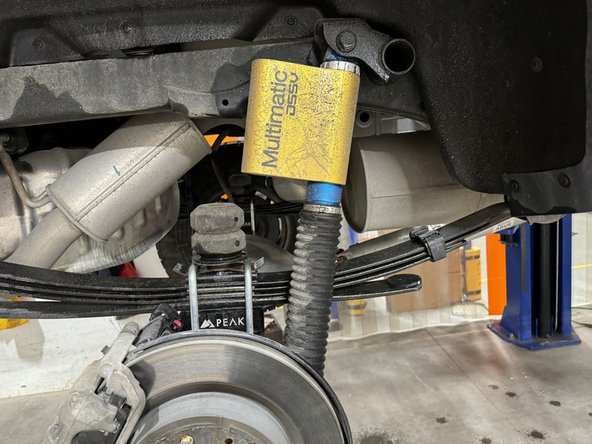

Remove upper and lower bolts from OEM shocks. Keep OEM bolts to install Elka shocks.
-
-
-

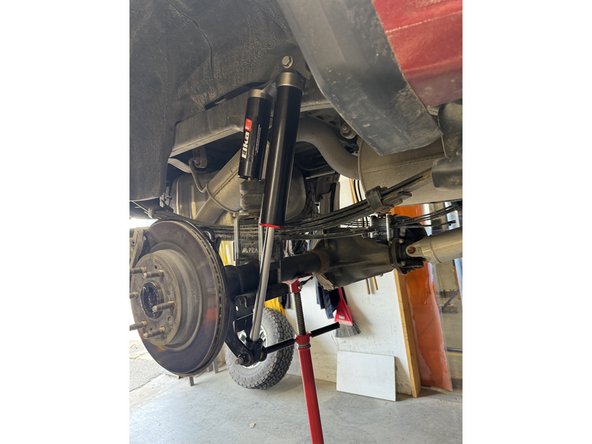

Install rear shocks with the reservoir facing the rear of the truck on both side.
-

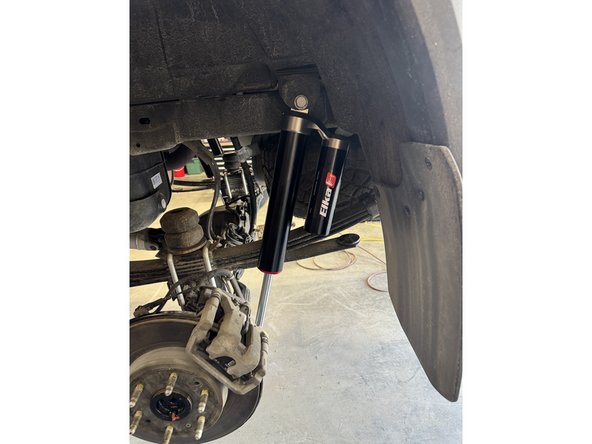

Make sure the sticker is facing the outside of the truck.
-
Using an underhoist stand or a jack, lift rear axle to be able to install lower bolt.
-
Torque all bolts as manufacturer's specs.
-
