FLS-48002_Rev.A

Major VersionM

by Patrick Tellier

  1. Lift the front of the snowmobile in such a way that the skis are off the ground. Remove the stock shocks according to the procedures recommended by the manufacturer.
    • Lift the front of the snowmobile in such a way that the skis are off the ground.

    • Remove the stock shocks according to the procedures recommended by the manufacturer.

    • Install the Elka front shocks with the piggyback reservoir at the top and pointing outside of the snowmobile as shown.

    • The lower shock eyelets should be installed with the rebound adjuster oriented towards the outside of the vehicle as shown.

  2. Remove the limiter strap and idler wheels. Lift the rear of the snowmobile in such a way that the track is not touching the ground.
    • Remove the limiter strap and idler wheels.

    • Lift the rear of the snowmobile in such a way that the track is not touching the ground.

    • Remove the stock suspension.

    • Install the Elka center shock with piggyback reservoir at the top and pointing towards the right side of the snowmobile as show on the photo.

  3. Install the Elka rear shock with the piggyback reservoir install on the left side with the rebound facing upwards as shown on the photo. Lower the snowmobile completely and re-install the limiter strap.

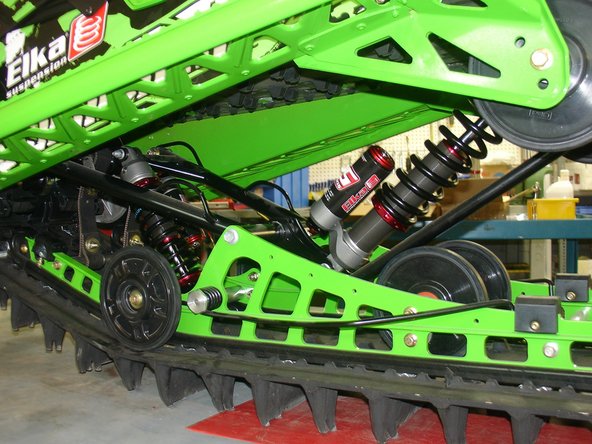

    • Install the Elka rear shock with the piggyback reservoir install on the left side with the rebound facing upwards as shown on the photo.

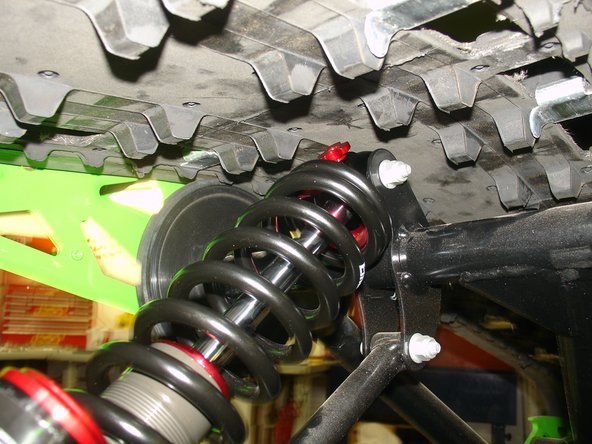

    • Lower the snowmobile completely and re-install the limiter strap.
