FLS-98022_revA

Major VersionM

by Patrick Tellier

  1. Lift the front of the snowmobile in such a way that the skis are off the ground. Remove the stock shocks according to the procedures recommended by the manufacturer.
    • Lift the front of the snowmobile in such a way that the skis are off the ground.

    • Remove the stock shocks according to the procedures recommended by the manufacturer.

    • Install the Elka front shocks with the piggyback reservoir at the top and pointing fowards of the snowmobile as shown

  2. Remove the limiter strap. Lift the rear of the snowmobile in such a way that the track is not touching the ground. Remove the stock suspension.
    • Remove the limiter strap.

    • Lift the rear of the snowmobile in such a way that the track is not touching the ground.

    • Remove the stock suspension.

    • Install the stock bushing with both spacer mount on each side of the bottom eyelet.

    • Install the Elka center shock with piggyback reservoir at the top and pointing towards the right side of the snowmobile as show on the photo.

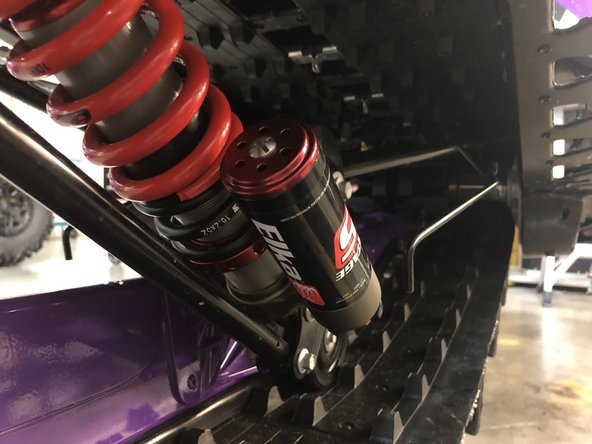

  3. Install the Elka rear shock with the piggyback reservoir install on the right side with the rebound facing upwards as shown on the photo. Lower the snowmobile completely and re-install the limiter strap.
    • Install the Elka rear shock with the piggyback reservoir install on the right side with the rebound facing upwards as shown on the photo.

    • Lower the snowmobile completely and re-install the limiter strap.

Finish Line
