Lift the UTV using a jack or stand so that the wheels are off the ground. Refer to your vehicle's owner's manual for specific instructions on how to remove the stock shocks. Keep the Original bolts to re-use when installing your new Elka Shocks
-
-
-

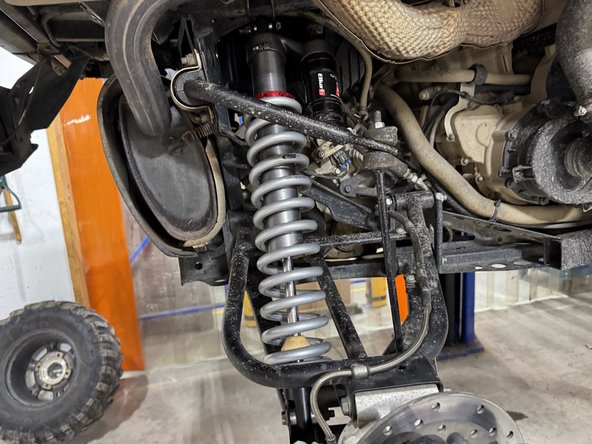

Install the front new Elka shocks with the reservoir ( on Stage 3-4-5 ) facing the side of the UTV.
-

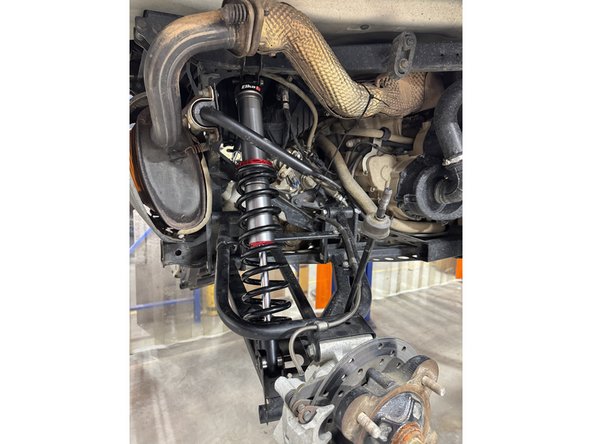

On Stage 2, Stage 4 and Stage 5 models, the lower shock eyelets should be installed with the rebound adjuster oriented towards the back of the vehicle. If needed, you can turn the lower eyelet to orient properly.
-
-
-

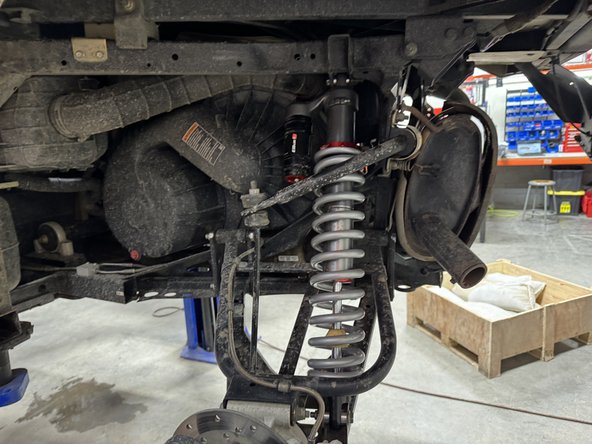

Install the new Elka rear shocks with the piggyback reservoir at the top and oriented towards the front of the vehicle.
-
On Stage 2, Stage 4 and Stage 5 models, the lower shock eyelets should be installed with the rebound adjuster oriented towards the back of the vehicle. If needed, you can turn the lower eyelet to orient properly.
-
