For the OEM replacement package:
-
Remove OEM stabilizer and install Elka stabilizer with the head facing the wheel as shown. You will have to compress Elka stabilizer to fit it in place.
-
Be sure it's the small button head Hex screw that is facing the front of vehicle as shown by red circle.
-
Use supplied bolt and nut for stabilizer's head fixation as shown by green arrow.
-
Torque bolts at 60 Ft/Lb
-
-
-
RELOCATED TYPE PACKAGE INSTALL:
-
Remove OEM steering stabilizer.
-
DO NOT LIFT THE VEHICLE FOR THIS STEP. With the vehicle on the ground, remove track bar bolt near to passenger side's sway-bar link as shown.
-
Replace the oem bolt with Elka supplied shaft. Re-use OEM nut and torque shaft to 80 Ft/Lb.
-
-
-
Slide first supplied washer on Elka shaft, install eyelet side of Elka stabilizer then slide second washer and nut as shown.
-

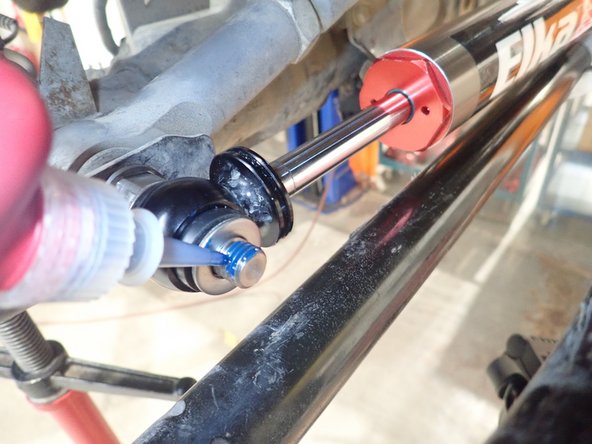

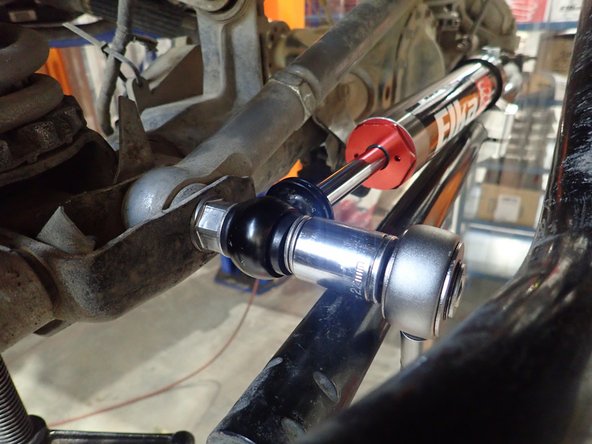

Apply thread locker on shaft threads and torque supplied nut at 70 Lb/Ft.
-
-
-

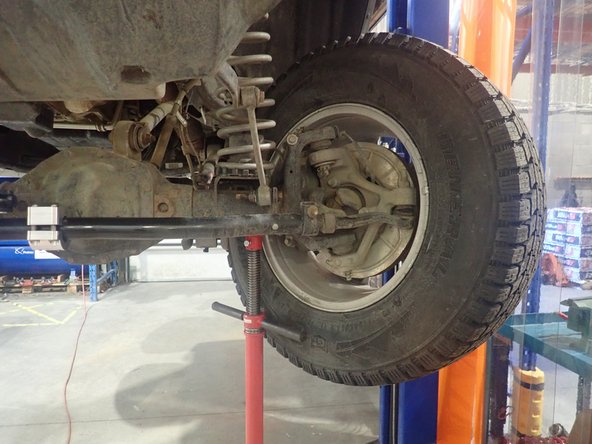

Lift the vehicle off the ground, then turn the wheels fully left. Make sure the left wheel steer stopper touch frame as shown by yellow circle.
-

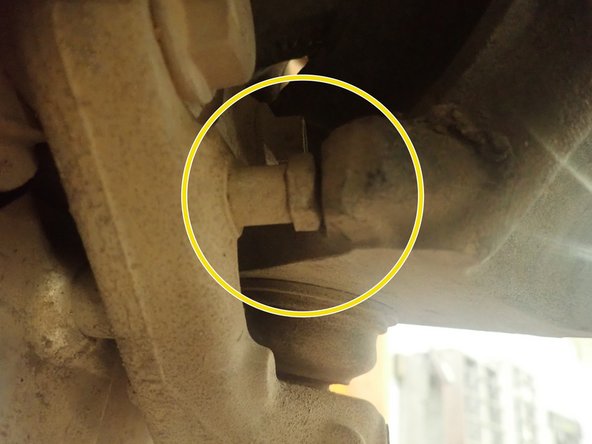

Install Elka clamp on steering Tie rod (must be 1.5" as oem). Do not tight now.
-

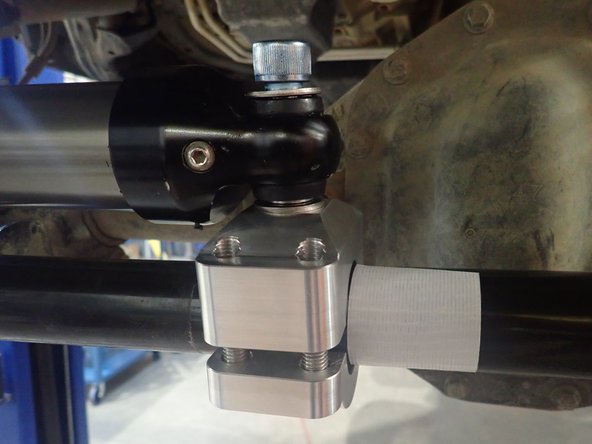

With a supplied washer installed on each sides of stabilizer head, fix temporarily stabilizer on clamp as shown.
-
-
-

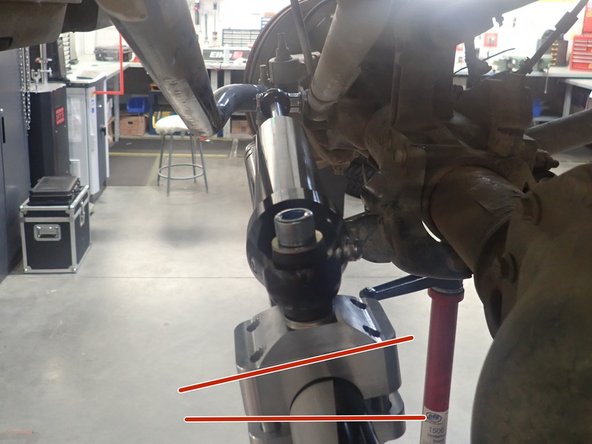

- With the wheels turned completely to the left and the stabilizer in fully extended position:
-

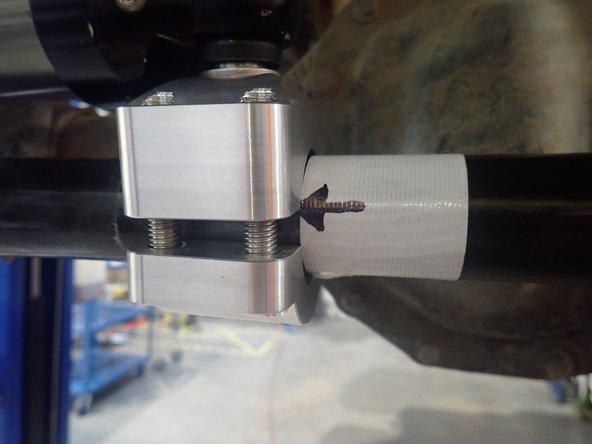

Stick a band of tape next to the right side of the clamp. Slightly tilt the clamp (10-15 degrees) as shown, then mark a line or an arrow as a point of reference.
-
Remove bolt that hold the stabilizer head on clamp for next step.
-
-
-

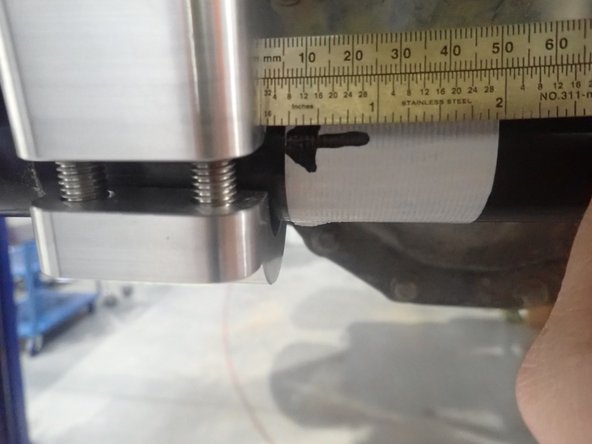

Slide clamp assembly from 1/16" to 1/4", so as to compress stabilizer, then torque clamp's socket head bolts in criss-cross pattern at 60 Ft/Lb.
-

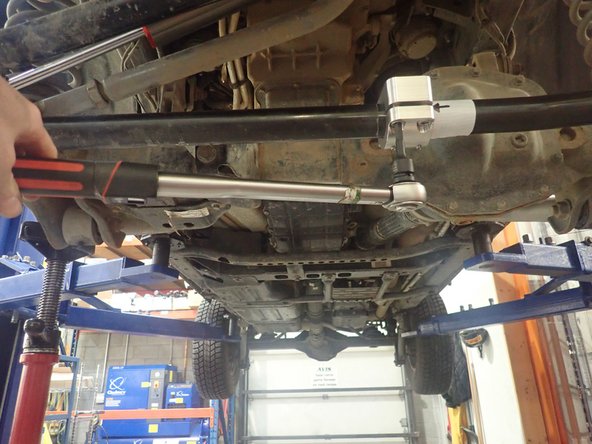

Make sure that the clamp still align with the tape mark and is slightly compressed when wheels are fully turned to left.
-

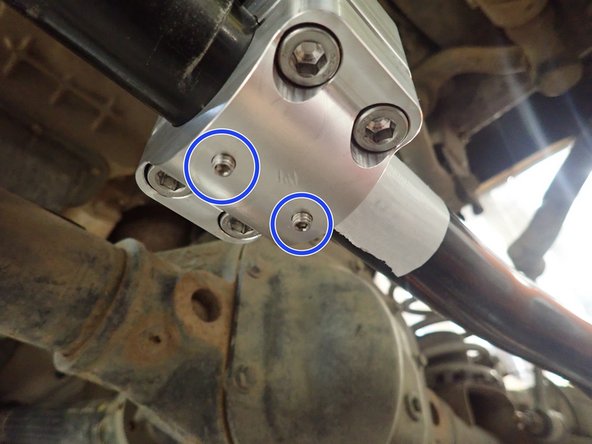

Tight set screws under clamp as shown by blue circles.
-
With a supplied washer installed on each sides of stabilizer head, fix stabilizer on clamp and torque bolt at 70 Lb/Ft.
-
-
-
Turn wheels fully right and make sure the steer stopper touch the frame.
-

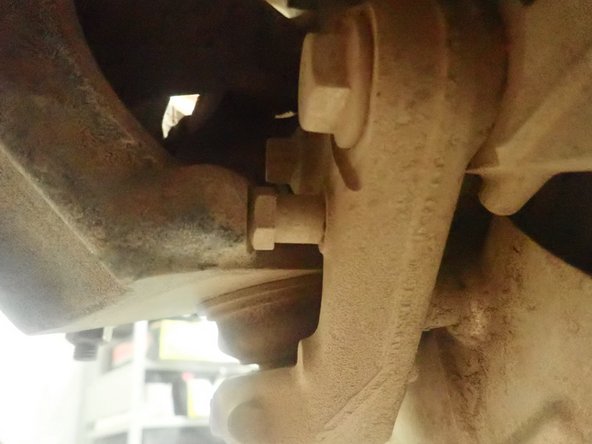

Check that the stabilizer still have a small amount of shaft travel when fully steer to the right. Red part must not touch the black eyelet.
-

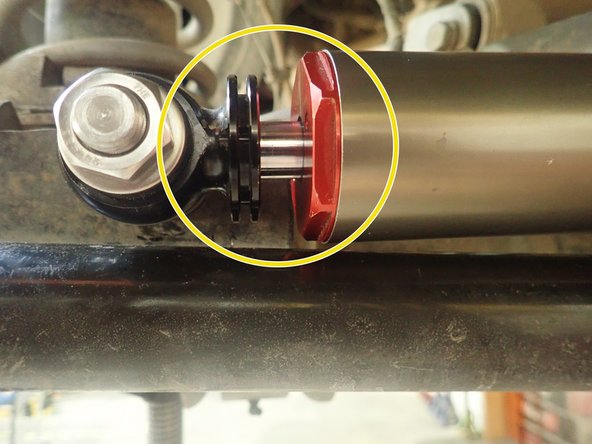

Steer wheels fully left and double confirm you can hit the steer stopper before the stabilizer is in fully extended position.
-
Installation completed
-
